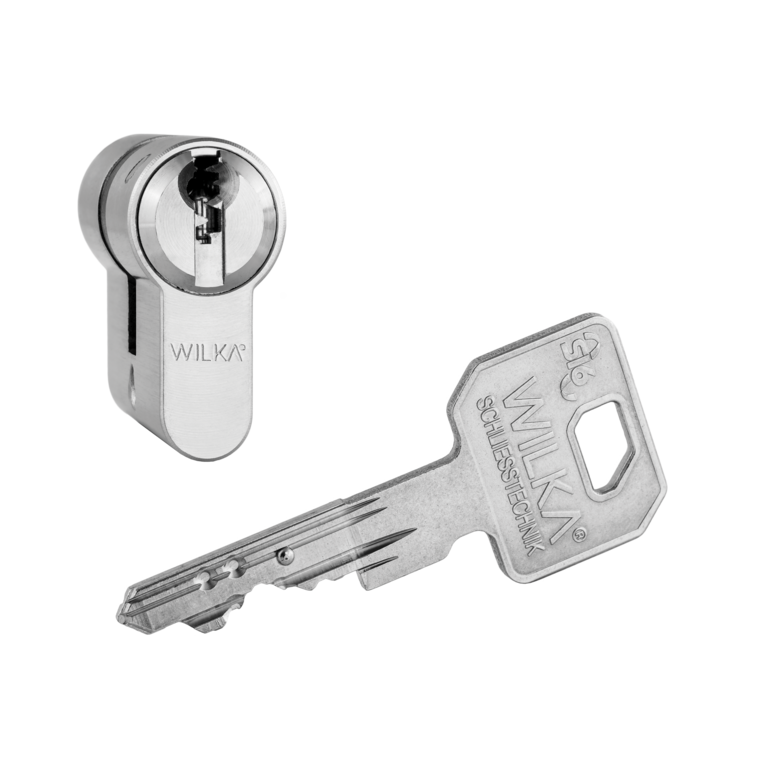

SI6 Verical system SI6 Keying systems
Skip slider Verical system SI6 Keying systems
End of slider
- Fixing screw: M5 x 80 mm
- Key: Nickel silver
- Key copy protection: Yes
- Key design for utilsation with common security fittings: Yes
- Key Inserting: Vertical
According to DIN 18252 Yes
According to EN 1303 Yes
| Length A and B can be combined arbitrarily | Yes |
| Maximum length A | 90 mm |
| Maximum length B | 90 mm |
| Minimum length A | 30 mm |
| Minimum length B | 30 mm |
| Assignment Category | 3.1.2,1.1 |
| Suitable products | 0500, 0501, 0503, 0513, 0515, 0560, 0580, 0586, 0587, 1250, 1251, 1252, 1253, 1280, 1312, 1314, 1319, 1320, 1321, 1323, 1398, 1399, 1400, 1405, 1406, 1407, 1408, 1410, 1415, 1463, 1473, 1478, 1479, 1480, 1481, 1483, 1484, 1488, 1489, 2201, 2530, 2531, 2532, 2533, 2534, 2553, 2554, 2555, 2613, 500F |
15
Results foundShow per page
| Description | Language | File size | File type | |
|---|---|---|---|---|
| DIN Certificate | en | 228.46 KB | Download | |
| DIN Zertifikat | de | 228.46 KB | Download | |
| Certificate SKG 2 Stars | en | 274.62 KB | Download | |
| Zertifikat SKG 2 Sterne | de | 274.62 KB | Download | |
| Certificate SKG 2 Stars | en | 274.73 KB | Download | |
| Zertifikat SKG 2 Sterne | de | 274.73 KB | Download | |
| Certificate SKG 3 Stars | en | 271.74 KB | Download | |
| Zertifikat SKG 3 Sterne | de | 271.74 KB | Download | |
| EPD | de | 698.13 KB | Download | |
| Certificate VdS 3 Stars | en | 574.26 KB | Download | |
| Zertifikat VdS 3 Sterne | de | 574.26 KB | Download | |
| EPD | en | 590.25 KB | Download | |
| si6-schluessel-profil-produktfoto.png | 92.25 KB | png | Download | |
| si6-profil-produktfoto.png | 151.97 KB | png | Download | |
| si6-zylinder-profil-produktfoto.png | 108.31 KB | png | Download |
| DIN tested attack resistance class A or D | Optional |
| Drilling protection (ABH) | Optional |
| Drilling protection (ABH) type | I, III, V |
| Hardened steel insert | Optional |
| Hardwearing design | Optional |
| Predetermined breaking points as pull protection | Optional |
| Seawater-resistant design | Optional |
| SKG certified | Optional SKG** or SKG*** |
| Special lengths on request | Yes |
| VdS certified | Optional VdS*** |
| Material / Coloring special | Brass chrome polished, chrome matt, polished, matt brushed, black |
