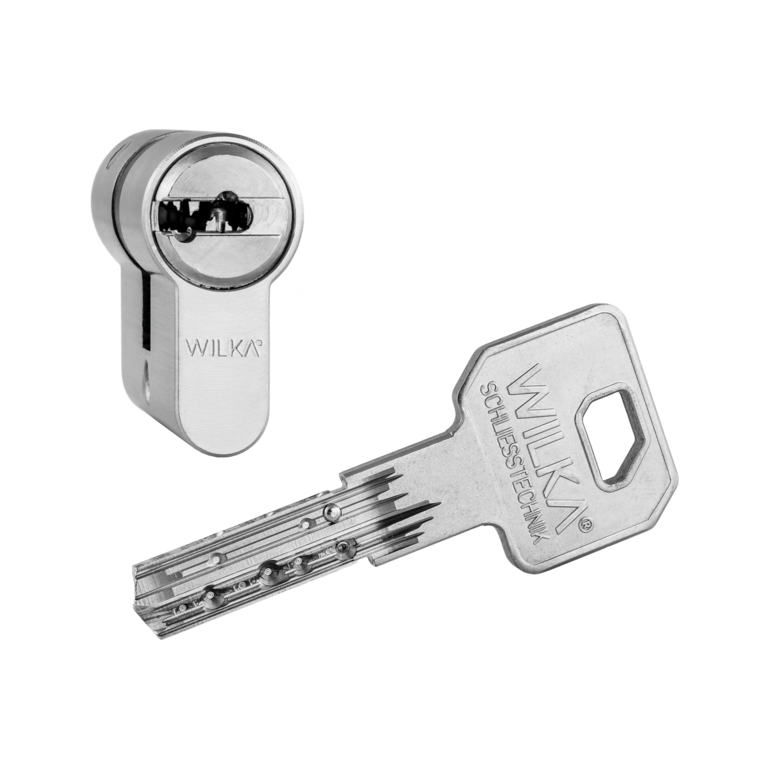

S3 Reversible customer keyway Carat S3
Skip slider Reversible customer keyway Carat S3
End of slider
- Customer keyway: Yes
- Fixing screw: M5 x 80 mm
- Key: Nickel silver
- Key copy protection: Yes
- Key design for utilsation with common security fittings: Yes
According to DIN 18252 Yes
According to EN 1303 Yes
| Length A and B can be combined arbitrarily | Yes |
| Maximum length A | 90 mm |
| Maximum length B | 90 mm |
| Minimum length A | 30 mm |
| Minimum length B | 30 mm |
| Assignment Category | 3.1.3,1.1 |
11
Results foundShow per page
| Description | Language | File size | File type | |
|---|---|---|---|---|
| DIN Zertifikat | de | 225.81 KB | Download | |
| DIN Certificate | en | 225.81 KB | Download | |
| Zertifikat SKG 2 Sterne | de | 274.81 KB | Download | |
| Certificate SKG 2 Stars | en | 274.81 KB | Download | |
| EPD | en | 590.25 KB | Download | |
| Zertifikat VdS 3 Sterne | de | 430.89 KB | Download | |
| Certificate VdS 3 Stars | en | 430.89 KB | Download | |
| Prospekt SINUS Kundenprofile | de | 4.95 MB | Download | |
| Brochure SINUS customer keyways | en | 4.94 MB | Download | |

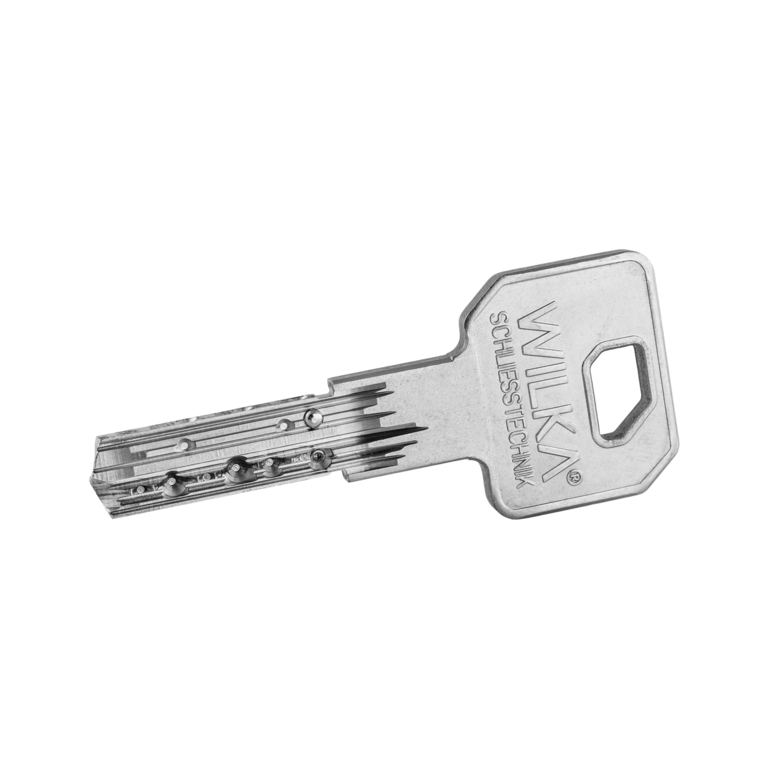

| s3-schluessel-profil-produktfoto.png | 103.59 KB | png | Download | |

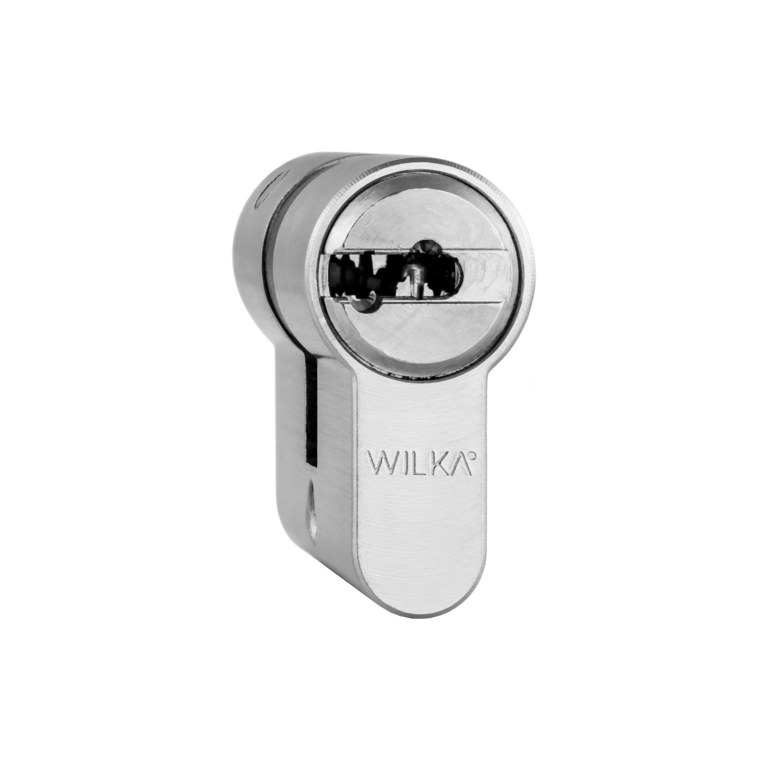

| s3-zylinder-profil-produktfoto.png | 110.16 KB | png | Download |
| DIN tested attack resistance class A or D | Optional |
| Drilling protection (ABH) | Optional |
| Drilling protection (ABH) type | IX, X |
| Hardened steel insert | Optional |
| Hardwearing design | Optional |
| Material / Coloring special | Brass dark bronze, chrome polished, chrome matt, polished, matt brushed |
| Predetermined breaking points as pull protection | Optional |
| Seawater-resistant design | Optional |
| SKG certified | Optional SKG** or SKG*** |
| Special lengths on request | Yes |
| VdS certified | Optional VdS*** |
