E204 Electronic double knob cylinder
Skip slider Electronic double knob cylinder
End of slider
| Acoustic signaling of access authorization | Yes |
| Assembly tool (not included with the cylinder, please order separatelly) | E234 |
| Battery type | Lithium Battery Type CR2 |
| Complian with FZG-requirements | Yes |
| Connection to programming device with | NFC-Programming E236 |
| Dimension width | 36 mm |
| Drill and pull protection | Standardized |
| Extension in step of | 5 mm |
| Fire protection for T90 doors (IP64) | Optional |
| Knob cylinder with extended shaft spindle (for security plates) | Optional |
| Length A and B can be combined arbitrarily | Yes |
| Material / color | Satin stainless steel with a black platic cap (optional brass mat coated) |
| Maximum length A | 90 mm |
| Maximum total length | 180 mm |
| Minimal length A | 30 mm |
| Minimum length B | 30 mm |
| Optical signaling of access authorization | Yes |
| Protection according to EN60529 | IP67 |
| Quantity of battery | 1 (included) |
| SKG-certificate, tested according to EN15684 | SKG*** |
| Zuordnung Kategorie | 2.2 |
| Benefits | easyApp, easyBasic, easyAccess, easyHotel |
16
Results foundShow per page
| Description | Language | File size | File type | |
|---|---|---|---|---|
| Declaration-of-Conformity E204 | en | 29.99 KB | Download | |
| CE-Erklärung E204 | de | 29.99 KB | Download | |
| Declaration-of-Conformity E204 BT | en | 43.12 KB | Download | |
| CE-Erklärung E204 BT | de | 43.12 KB | Download | |
| Declaration-of-Conformity E204 easyAccess | en | 41.97 KB | Download | |
| CE-Erklärung E204 easyAccess | de | 41.97 KB | Download | |
| FZG Certification E204 | en | 58.91 KB | Download | |
| FZG-Zertifikat E204 | de | 58.91 KB | Download | |
| TH90-Proof E204 Overlay (DE) | en | 264.80 KB | Download | |
| TH90-Nachweis E204 Deckblatt | de | 264.80 KB | Download | |
| SKG E204 Certification | en | 277.84 KB | Download | |
| SKG E204 Zertifikat (EN) | de | 277.84 KB | Download | |

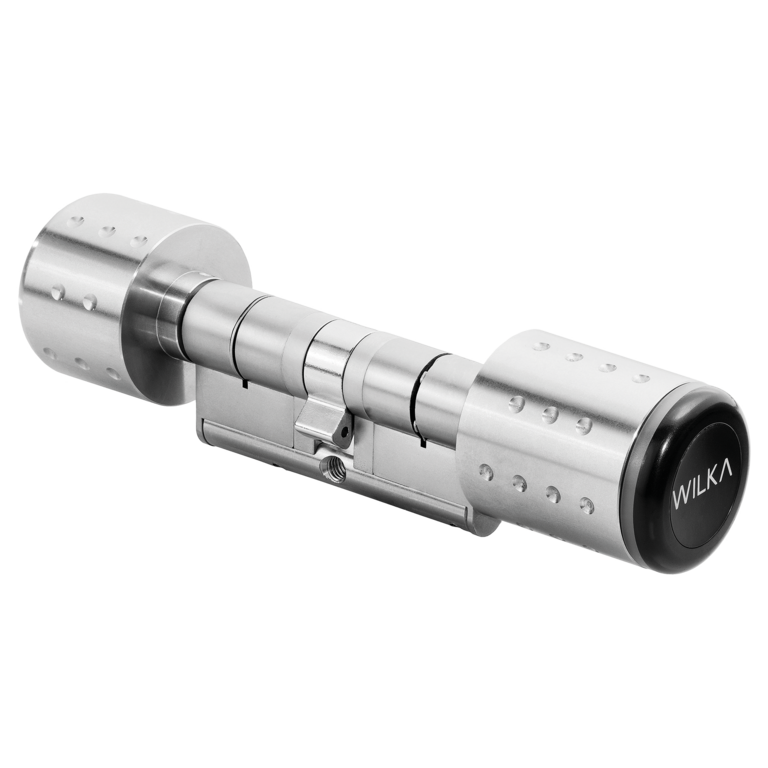

| e204-produktfoto.png | 143.63 KB | png | Download | |

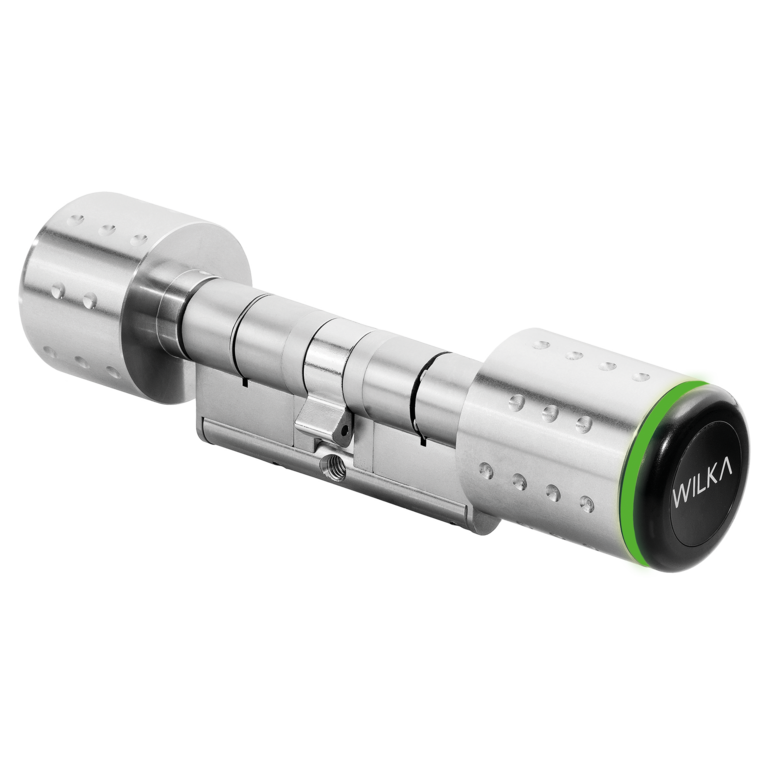

| e204-gruen-produktfoto.png | 145.40 KB | png | Download | |

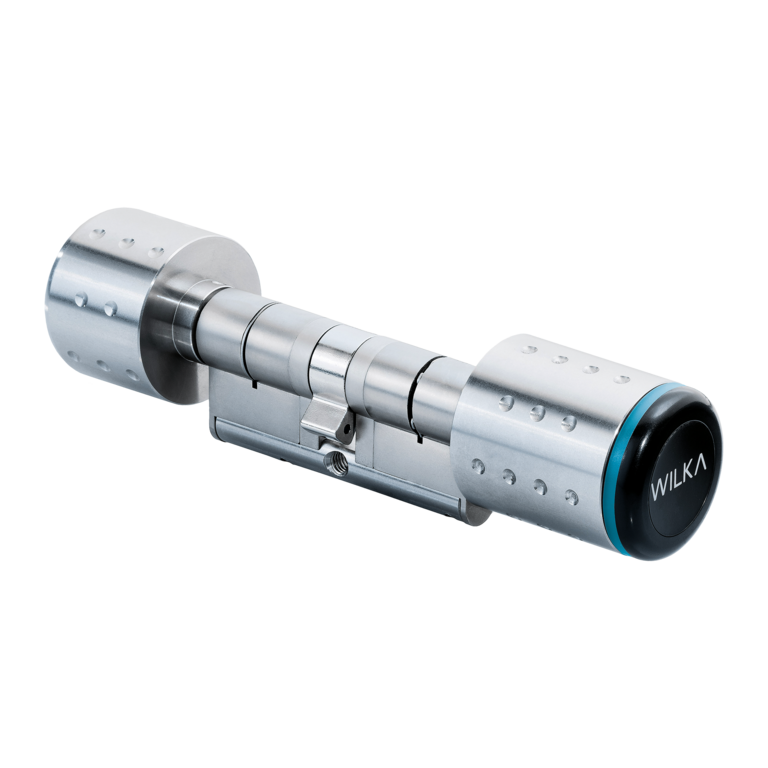

| e204-blau-produktfoto.png | 136.73 KB | png | Download | |

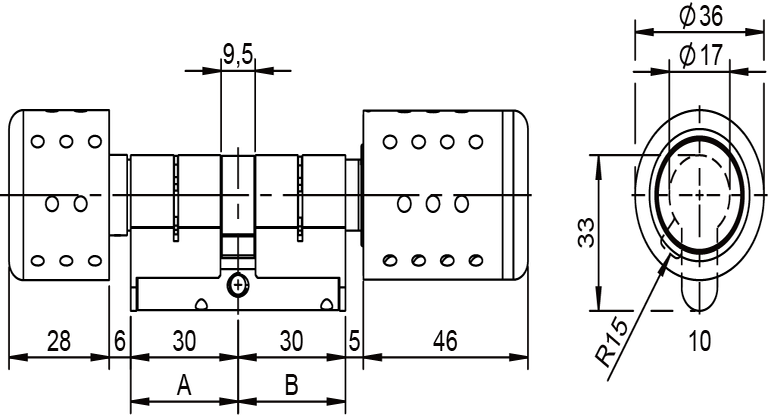

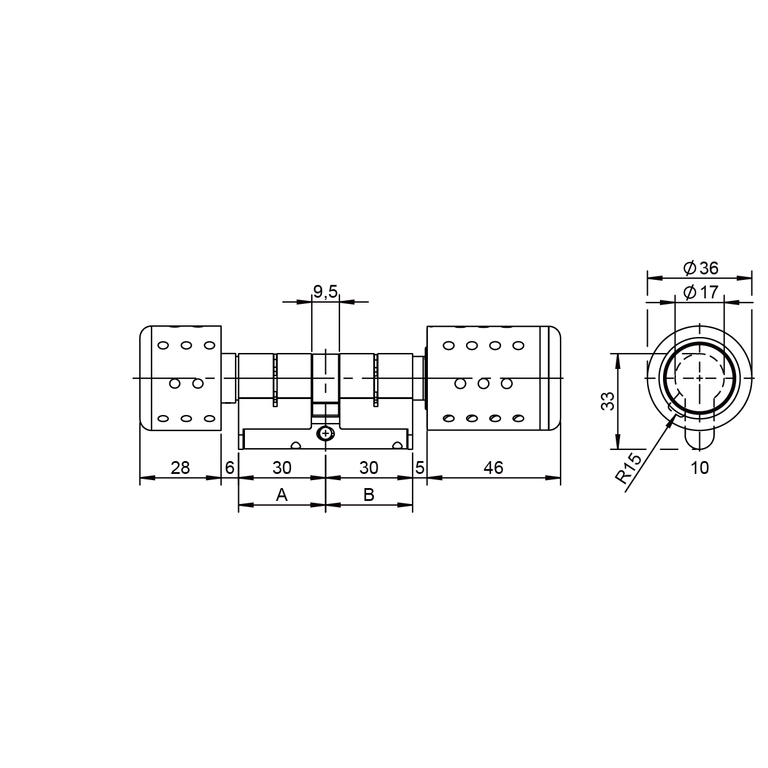

| e204-techzeichnung.png | 16.68 KB | png | Download |
