500F Round cylinder for garage door locks

Skip slider
  • Round cylinder for garage door locks
  • Round cylinder for garage door locks
Round cylinder for garage door locks
  • Round cylinder for garage door locks
  • Round cylinder for garage door locks
Find a retailer now
Assignment Category3.2.5
Diameter32 mm
Drilling protection (ABH)Optional
Drilling protection (ABH) typeI
Fixing screw2 x M5
Key InsertingVertical
Key with custom logoOptional
Number of pin tumblers6
Picking resistanceYes
With Connection pinYes
With fixing plateYes
With RoseYes
Material / ColoringBrass nickel-plated matt
Material / Coloring specialBrass chrome polished, chrome matt, polished, matt brushed
Compatible SystemsStandard profile conventional, SI6, S1, S4

4

Results found

Show per page

DescriptionLanguageFile sizeFile type
EPD en 590.25 KBpdfDownload
EPD de 698.13 KBpdfDownload

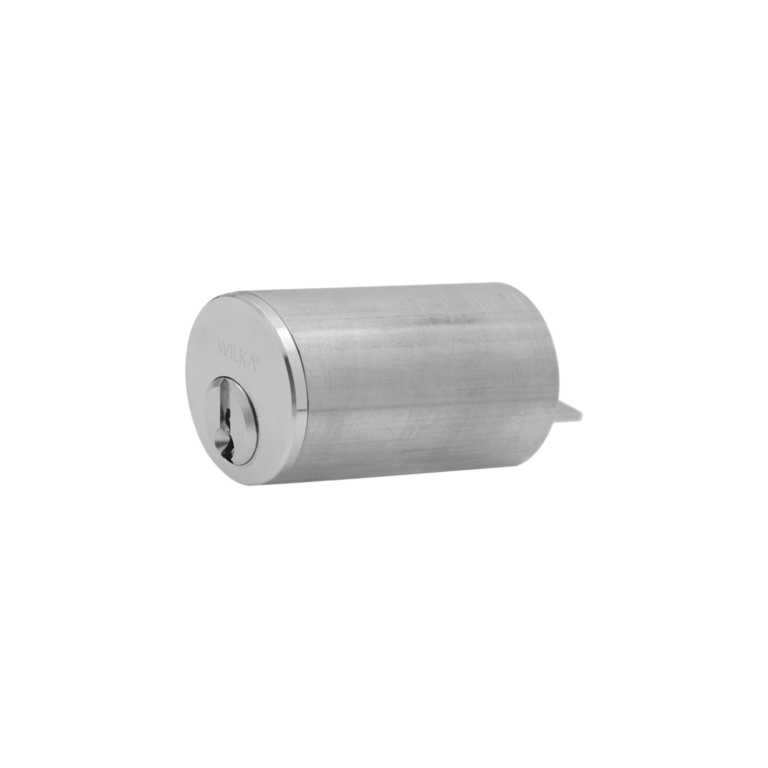

500f-produktfoto.png61.60 KBpngDownload

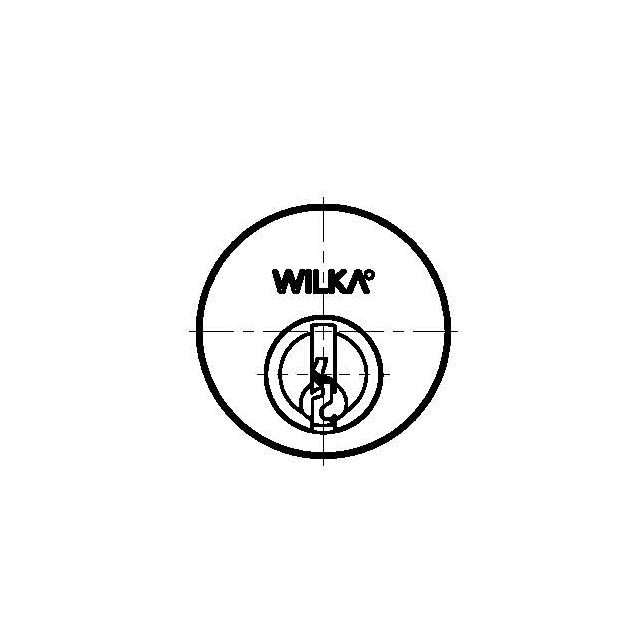

500f-techzeichnung.png24.05 KBpngDownload

Compatible systems

Skip product slider
  • Standard cylinder Standard cylinder

    Standard profile conventional Standard cylinder

  • Verical system SI6 Keying systems Verical system SI6 Keying systems

    SI6 Verical system SI6 Keying systems

  • Verical customer keyway Carat S1 Verical customer keyway Carat S1

    S1 Verical customer keyway Carat S1

  • Verical customer keyway Carat S4 Verical customer keyway Carat S4

    S4 Verical customer keyway Carat S4
