3683 Double cylinder with emergency function asymmetric

Skip slider
  • Double cylinder with emergency function asymmetric
  • Double cylinder with emergency function asymmetric
Double cylinder with emergency function asymmetric
  • Double cylinder with emergency function asymmetric
  • Double cylinder with emergency function asymmetric
Find a retailer now
Assignment Category3.2.1
Drilling protection (ABH)Optional
Drilling protection (ABH) typeVIII, IX, X
Emergency functionYes
FunctionCylinder will operate even if a key has been left in the cylinder on the opposite side
Hardwearing designOptional
Key InsertingHorizontal
Key with custom logoOptional
Maximum length A26 mm
Maximum length B60 mm
Minimum length A26 mm
Minimum length B35 mm
Number of pin tumblers5
Picking resistanceYes
Seawater-resistant designOptional
Special lengths on requestYes
Material / ColoringBrass nickel-plated matt
Material / Coloring specialBrass chrome polished, chrome matt, polished, matt brushed, black
Compatible SystemsStandard profile reversible key system, 3VS, 2VS, S3, S5

4

Results found

Show per page

DescriptionLanguageFile sizeFile type
EPD de 698.13 KBpdfDownload
EPD en 590.25 KBpdfDownload

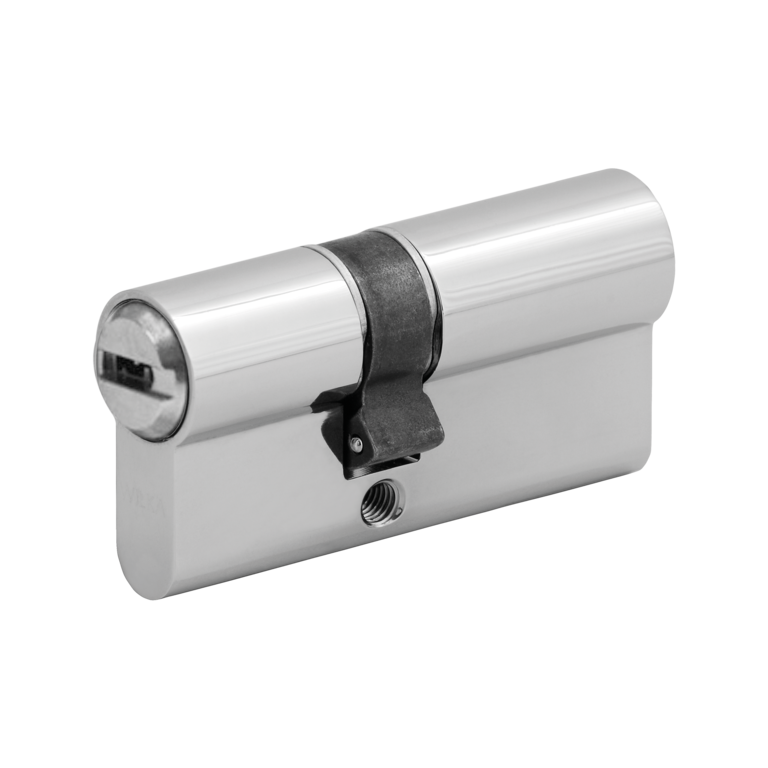

3683-produktfoto.png132.41 KBpngDownload

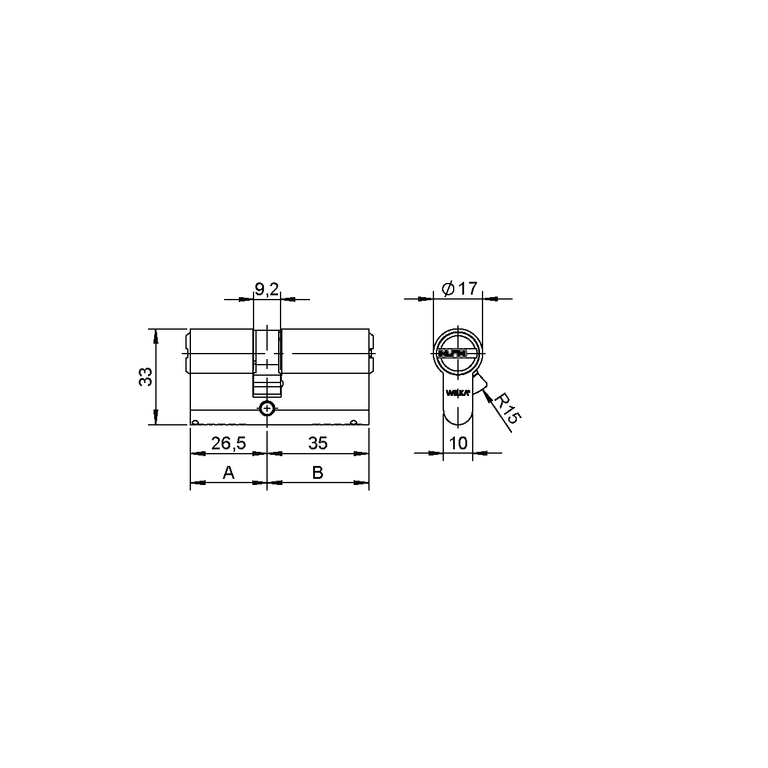

3683-techzeichnung.png25.20 KBpngDownload
