3681 Double cylinder asymmetric

Skip slider
  • Double cylinder asymmetric
  • Double cylinder asymmetric
Double cylinder asymmetric
  • Double cylinder asymmetric
  • Double cylinder asymmetric
Find a retailer now
Assignment Category3.2.1
Drilling protection (ABH)Optional
Drilling protection (ABH) typeVIII, IX, X
Hardwearing designOptional
Key InsertingHorizontal
Key with custom logoOptional
Maximum length A60 mm
Maximum length B60 mm
Minimum length A26 mm
Minimum length B30 mm
Number of pin tumblers5
Picking resistanceYes
Seawater-resistant designOptional
Special lengths on requestYes
Material / ColoringBrass nickel-plated matt
Material / Coloring specialBrass chrome polished, chrome matt, polished, matt brushed, black
Compatible SystemsStandard profile reversible key system, 3VS, 2VS, S3, S5

4

Results found

Show per page

DescriptionLanguageFile sizeFile type
EPD en 590.25 KBpdfDownload
EPD de 698.13 KBpdfDownload

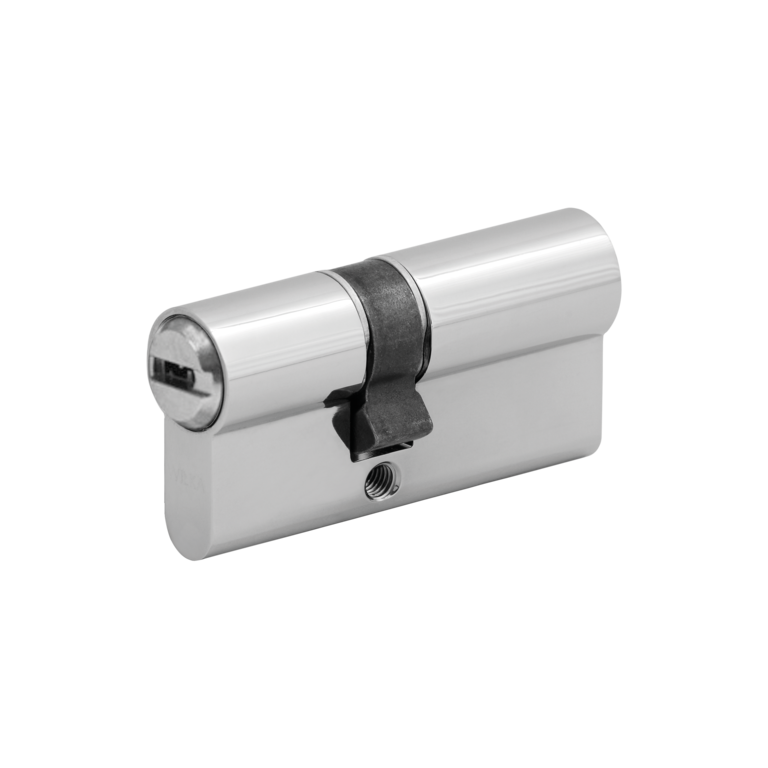

3681-produktfoto.png93.33 KBpngDownload

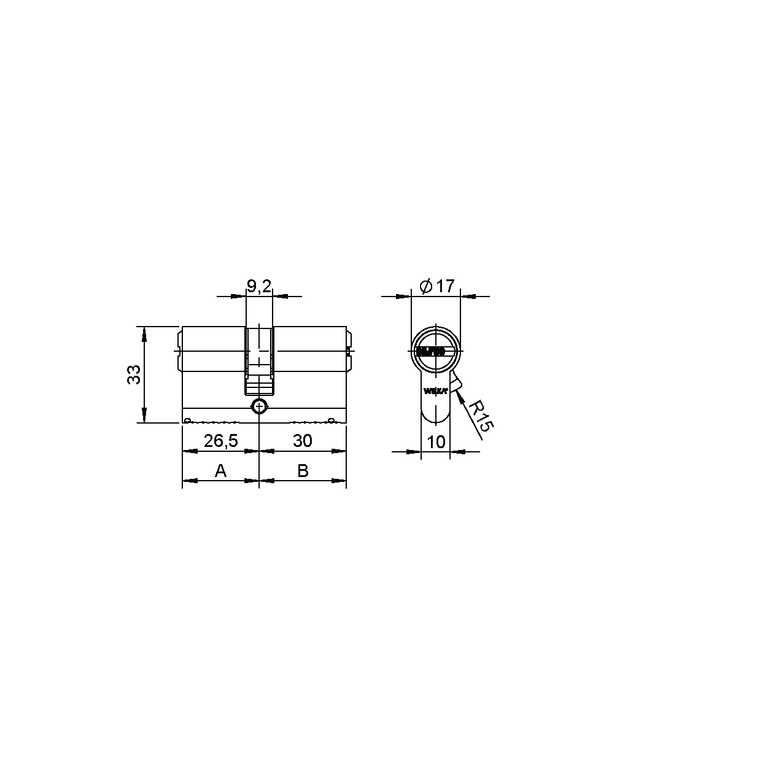

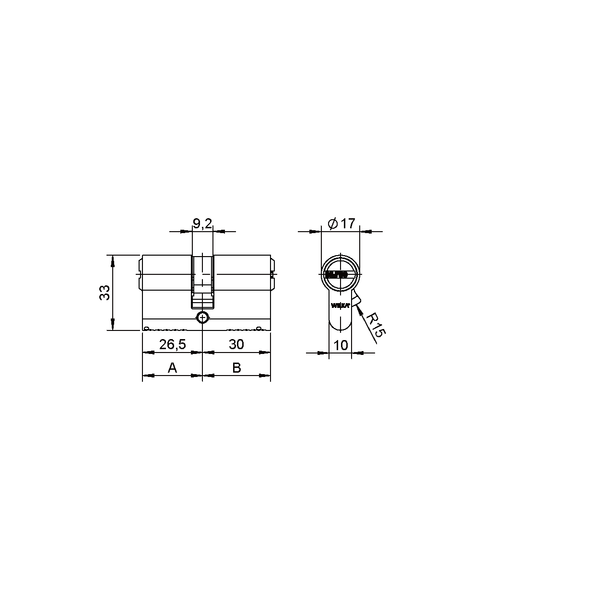

3681-techzeichnung.png25.28 KBpngDownload
