3663 Double cylinder with emergency function

Skip slider
  • Double cylinder with emergency function
  • Double cylinder with emergency function
Double cylinder with emergency function
  • Double cylinder with emergency function
  • Double cylinder with emergency function
Find a retailer now
Assignment Category3.2.1
DIN tested attack resistance class A or DOptional
DIN tested attack resistance class COptional
Drilling protection (ABH)Optional
Drilling protection (ABH) typeVIII, IX, X
Emergency functionYes
FunctionCylinder will operate even if a key has been left in the cylinder on the opposite side
Hardwearing designOptional
Key InsertingHorizontal
Key with custom logoOptional
Length A and B can be combined arbitrarilyYes
Maximum length A90 mm
Maximum length B90 mm
Minimum length A30 mm
Minimum length B30 mm
Number of pin tumblers6
Picking resistanceYes
Seawater-resistant designOptional
SKG certifiedOptional SKG** or SKG***
Special lengths on requestYes
Material / ColoringBrass nickel-plated matt
Material / Coloring specialBrass chrome polished, chrome matt, polished, matt brushed, black
Compatible SystemsStandard profile reversible key system, 3VS, 2VS, S3, S5

10

Results found

Show per page

DescriptionLanguageFile sizeFile type
DIN Certificate en 225.81 KBpdfDownload
DIN Zertifikat de 225.81 KBpdfDownload
Certificate SKG 2 Stars en 244.65 KBpdfDownload
Zertifikat SKG 2 Sterne de 244.65 KBpdfDownload
Zertifikat SKG 2 Sterne de 274.81 KBpdfDownload
Certificate SKG 2 Stars en 274.81 KBpdfDownload
EPD de 698.13 KBpdfDownload
EPD en 590.25 KBpdfDownload

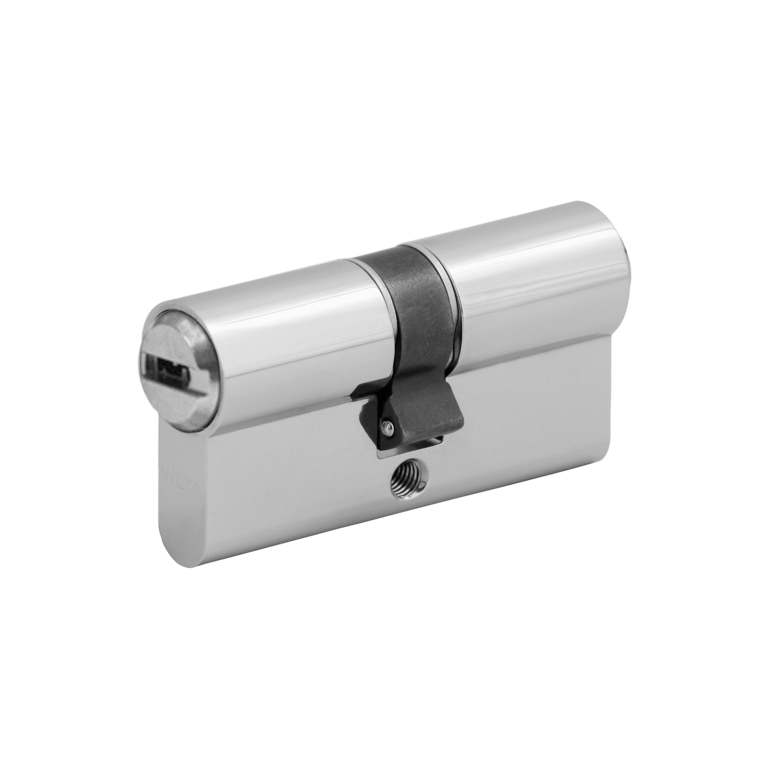

3663-produktfoto.png102.83 KBpngDownload

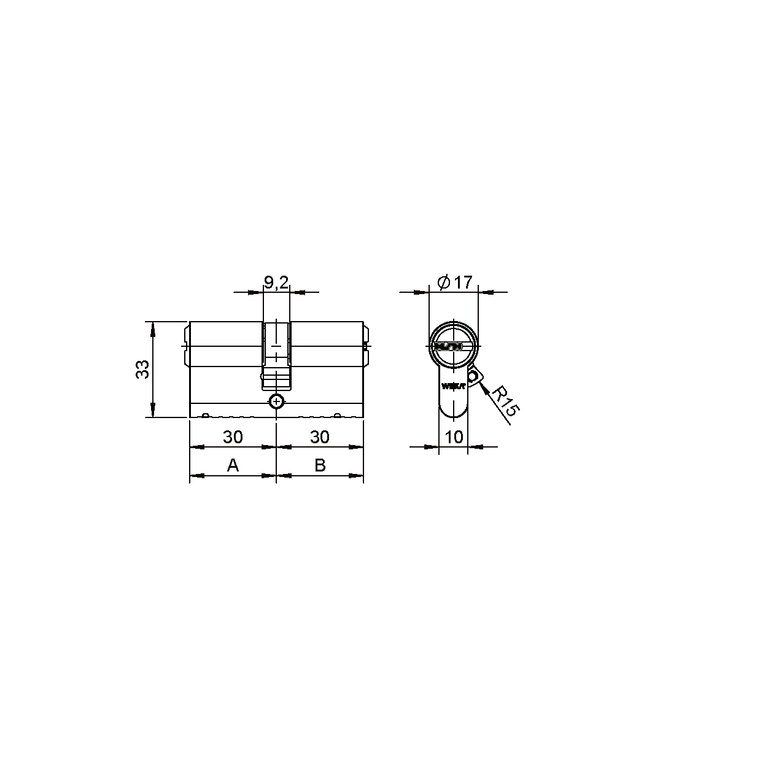

3663-techzeichnung.png25.06 KBpngDownload
