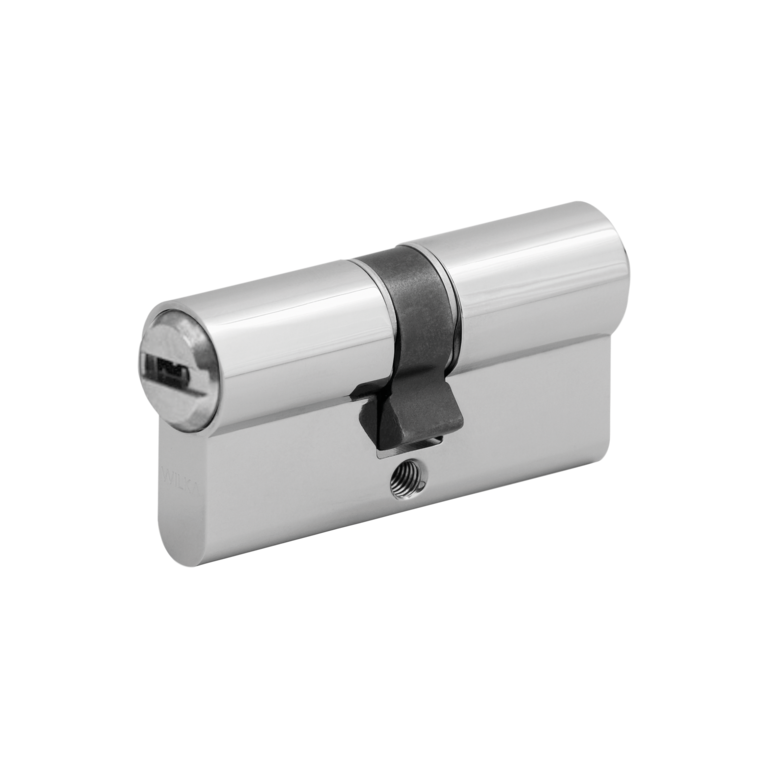

3623 Double cylinder with key retaining
Skip slider Double cylinder with key retaining
End of slider
| Assignment Category | 3.2.1 |
| Drilling protection (ABH) | Optional |
| Drilling protection (ABH) type | VIII, IX, X |
| Function | Due to the limited closing way, the key will be kept in the cylinder until the door has been locked |
| Hardwearing design | Optional |
| Key Inserting | Horizontal |
| Key retaining | Yes |
| Key with custom logo | Optional |

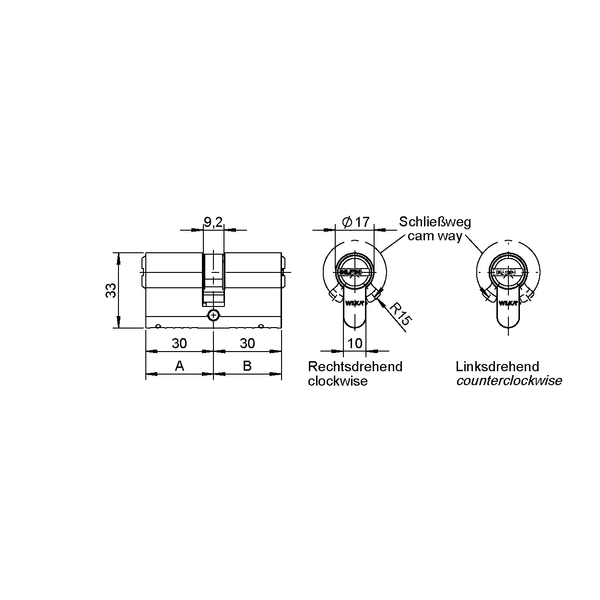

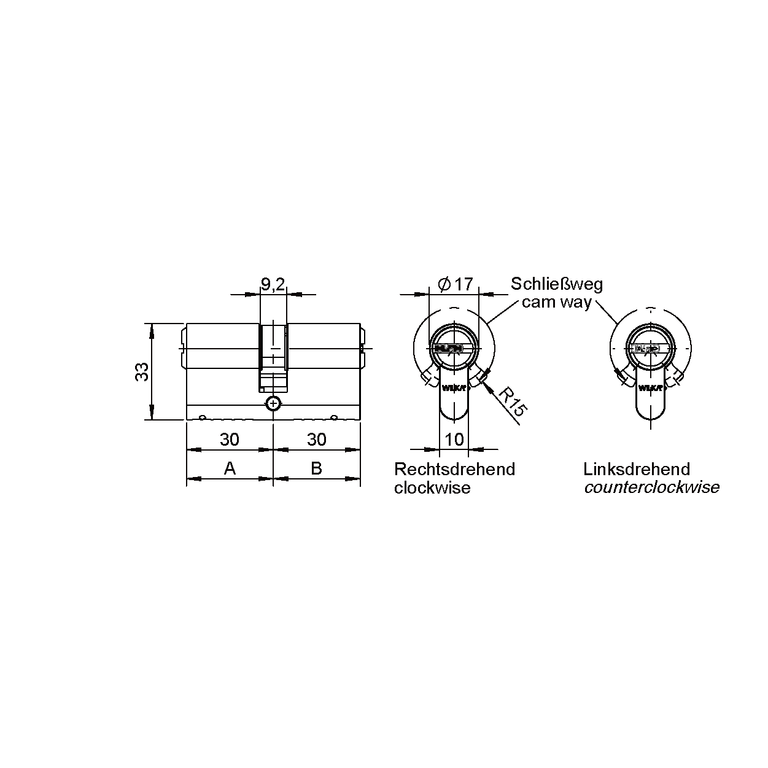

| Length A and B can be combined arbitrarily | Yes |
| Maximum length A | 90 mm |
| Maximum length B | 90 mm |
| Minimum length A | 30 mm |
| Minimum length B | 30 mm |
| Number of pin tumblers | 6 |
| Picking resistance | Yes |
| Seawater-resistant design | Optional |
| Special lengths on request | Yes |
| Material / Coloring | Brass nickel-plated matt |
| Material / Coloring special | Brass chrome polished, chrome matt, polished, matt brushed |
| Compatible Systems | Standard profile reversible key system, 3VS, 2VS, S3, S5 |
