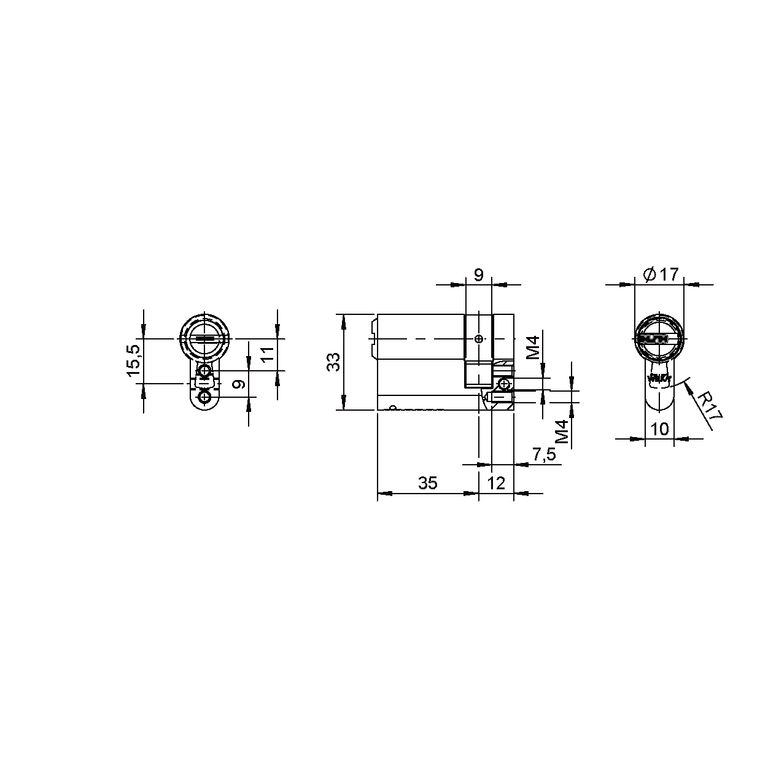

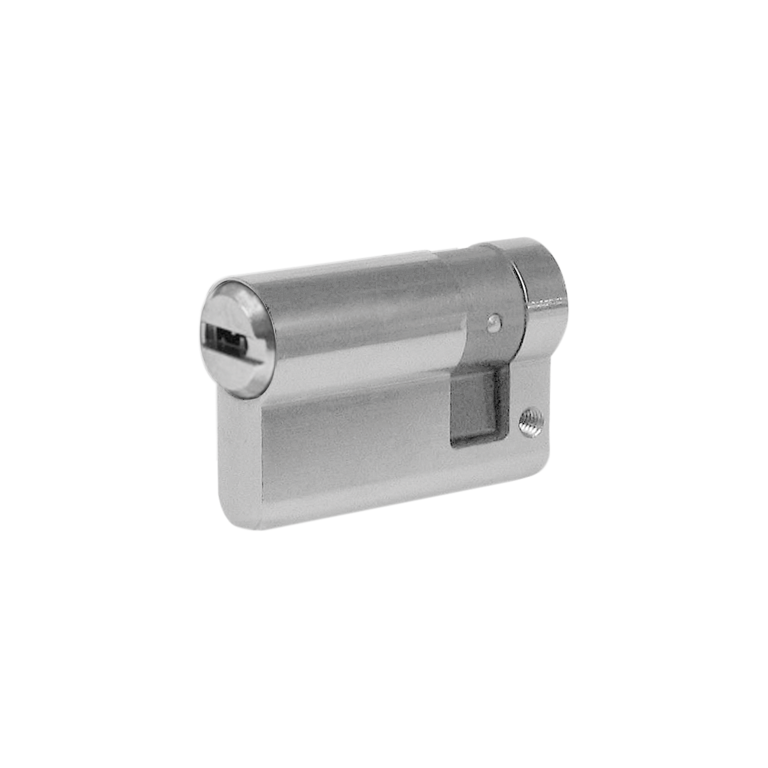

3620 Elevator cylinder, on the reverse side two tap holes M4, laterally one tap hole M4
Skip slider Elevator cylinder, on the reverse side two tap holes M4, laterally one tap hole M4
End of slider
| Assignment Category | 3.2.3 |
| Cam | With radius 17 mm |
| Drilling protection (ABH) | Optional |
| Drilling protection (ABH) type | VIII, IX, X |
| Hardwearing design | Optional |
| Key Inserting | Horizontal |
| Key with custom logo | Optional |
| Maximum length A | 35 mm |
| Maximum length B | 10 mm |
| Minimum length A | 35 mm |
| Minimum length B | 10 mm |
| Number of pin tumblers | 6 |
| Picking resistance | Yes |
| Seawater-resistant design | Optional |
| Special lengths on request | Yes |
| Material / Coloring | Brass nickel-plated matt |
| Material / Coloring special | Brass chrome polished, chrome matt, polished, matt brushed, black |
| Compatible Systems | Standard profile reversible key system, 3VS, 2VS, S3, S5 |
