3619 Elevator cylinder, on the reverse side 2 tap holes M4

Skip slider
  • Elevator cylinder, on the reverse side 2 tap holes M4
  • Elevator cylinder, on the reverse side 2 tap holes M4
Elevator cylinder, on the reverse side 2 tap holes M4
  • Elevator cylinder, on the reverse side 2 tap holes M4
  • Elevator cylinder, on the reverse side 2 tap holes M4
Find a retailer now
Assignment Category3.2.3
Drilling protection (ABH)Optional
Drilling protection (ABH) typeVIII, IX, X
Hardwearing designOptional
Key InsertingHorizontal
Key with custom logoOptional
Maximum length A60 mm
Maximum length B10 mm
Minimum length A26,5 mm
Minimum length B10 mm
Number of pin tumblers5, 6
Picking resistanceYes
Seawater-resistant designOptional
Special lengths on requestYes
CamAdjustable in 8 ways
Material / ColoringBrass nickel-plated matt
Material / Coloring specialBrass chrome polished, chrome matt, polished, matt brushed, black
Compatible SystemsStandard profile reversible key system, 3VS, 2VS, S3, S5

4

Results found

Show per page

DescriptionLanguageFile sizeFile type
EPD en 590.25 KBpdfDownload
EPD de 698.13 KBpdfDownload

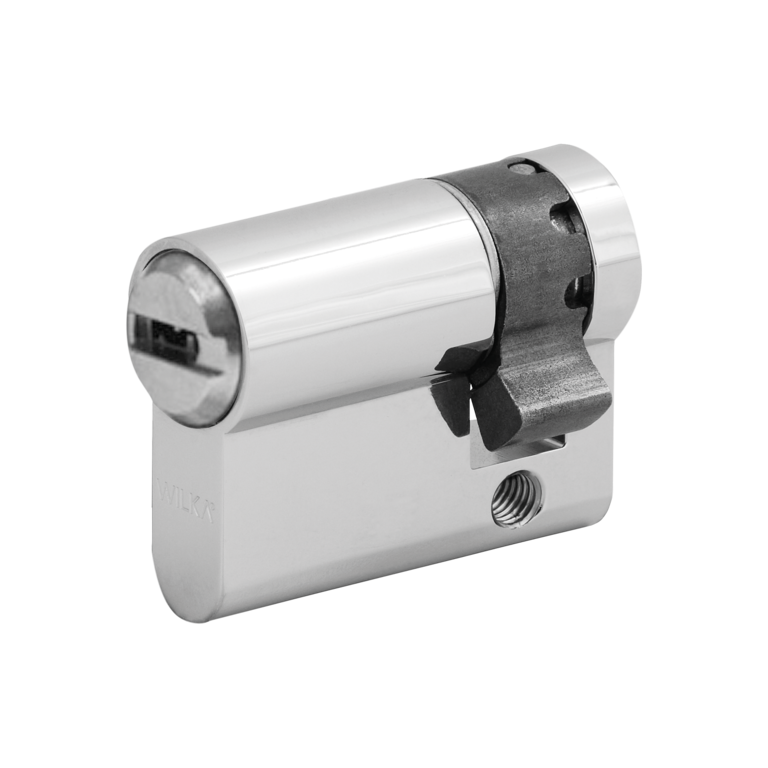

3619-produktfoto.png157.51 KBpngDownload

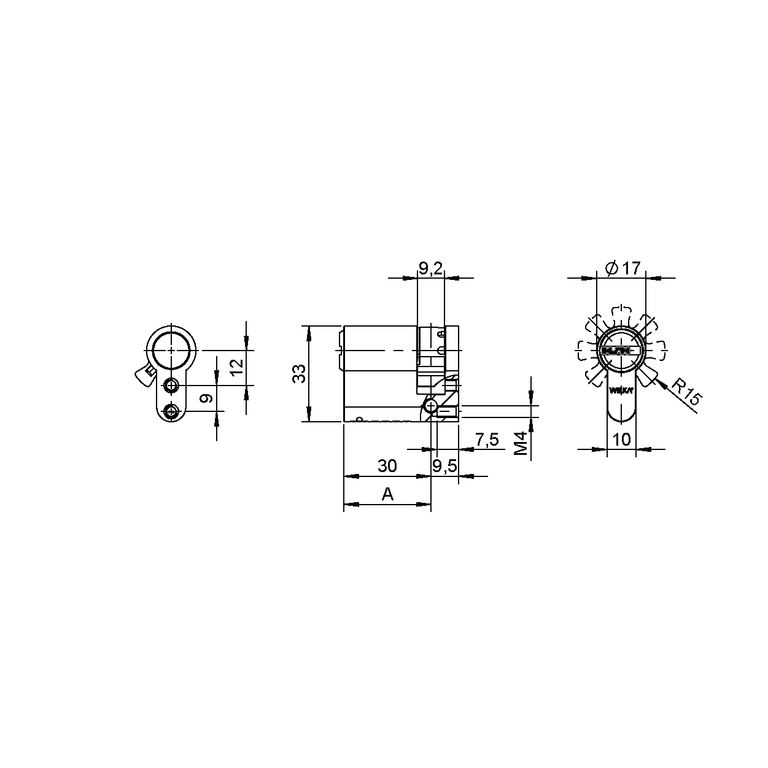

3619-techzeichnung.png38.39 KBpngDownload

Compatible systems

Skip product slider
  • Reversible key system W3600 Reversible key system W3600

    Standard profile reversible key system Reversible key system W3600

  • Reversible key system 3VS Keying systems Reversible key system 3VS Keying systems

    3VS Reversible key system 3VS Keying systems

  • Reversible key system 2VS Keying systems Reversible key system 2VS Keying systems

    2VS Reversible key system 2VS Keying systems

  • Reversible customer keyway Carat S3 Reversible customer keyway Carat S3

    S3 Reversible customer keyway Carat S3

  • Reversible customer keyway Carat S5 Reversible customer keyway Carat S5

    S5 Reversible customer keyway Carat S5
