3612 Half cylinder free-wheel FZG

Skip slider
  • Half cylinder free-wheel FZG
  • Half cylinder free-wheel FZG
Half cylinder free-wheel FZG
  • Half cylinder free-wheel FZG
  • Half cylinder free-wheel FZG
Find a retailer now
Assignment Category3.2.3
Drilling protection (ABH)Optional
Drilling protection (ABH) typeVIII, IX, X
FunctionWith free-wheel function for transmission locks
FZGYes
Hardwearing designOptional
Key InsertingHorizontal
Key with custom logoOptional
Maximum length A90 mm
Maximum length B10 mm
Minimum length A30 mm
Minimum length B10 mm
Number of pin tumblers6
Picking resistanceYes
Seawater-resistant designOptional
Special lengths on requestYes
Material / ColoringBrass nickel-plated matt
Material / Coloring specialBrass chrome polished, chrome matt, polished, matt brushed
Compatible SystemsStandard profile reversible key system, 3VS, 2VS, S3, S5

6

Results found

Show per page

DescriptionLanguageFile sizeFile type
EPD de 698.13 KBpdfDownload
Certificate FZG en 212.96 KBpdfDownload
Zertifikat FZG de 212.96 KBpdfDownload
EPD en 590.25 KBpdfDownload
3612-produktfoto.png173.21 KBpngDownload

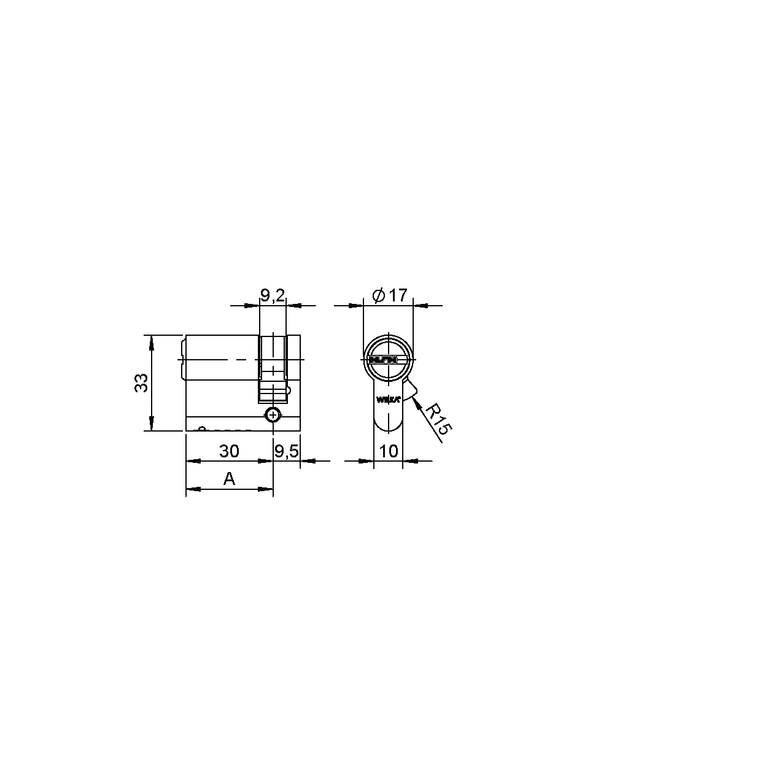

3612-techzeichnung.png23.13 KBpngDownload

Compatible systems

Skip product slider
  • Reversible key system W3600 Reversible key system W3600

    Standard profile reversible key system Reversible key system W3600

  • Reversible key system 3VS Keying systems Reversible key system 3VS Keying systems

    3VS Reversible key system 3VS Keying systems

  • Reversible key system 2VS Keying systems Reversible key system 2VS Keying systems

    2VS Reversible key system 2VS Keying systems

  • Reversible customer keyway Carat S3 Reversible customer keyway Carat S3

    S3 Reversible customer keyway Carat S3

  • Reversible customer keyway Carat S5 Reversible customer keyway Carat S5

    S5 Reversible customer keyway Carat S5
