3610 Half cylinder

Skip slider
  • Half cylinder
  • Half cylinder
Half cylinder
  • Half cylinder
  • Half cylinder
Find a retailer now
Assignment Category3.2.3
DIN tested attack resistance class A or DOptional
DIN tested attack resistance class COptional
Drilling protection (ABH)Optional
Drilling protection (ABH) typeVIII, IX, X
Hardwearing designOptional
Key InsertingHorizontal
Key with custom logoOptional
Maximum length A90 mm
Maximum length B10 mm
Minimum length A26,5 mm
Minimum length B10 mm
Number of pin tumblers5, 6
Picking resistanceYes
Seawater-resistant designOptional
SKG certifiedOptional SKG** or SKG***
Special lengths on requestYes
VdS certifiedOptional VdS***
CamAdjustable in 8 ways
Material / ColoringBrass nickel-plated matt
Material / Coloring specialBrass chrome polished, chrome matt, polished, matt brushed, black
Compatible SystemsStandard profile reversible key system, 3VS, 2VS, S3, S5

14

Results found

Show per page

DescriptionLanguageFile sizeFile type
DIN Certificate en 225.81 KBpdfDownload
DIN Zertifikat de 225.81 KBpdfDownload
Certificate SKG 2 Stars en 244.65 KBpdfDownload
Zertifikat SKG 2 Sterne de 244.65 KBpdfDownload
Certificate SKG 2 Stars en 274.81 KBpdfDownload
Zertifikat SKG 2 Sterne de 274.81 KBpdfDownload
SKG_ENG_G361_Q361_3VS_2VS_S3_S5_3VE_P3_PR300.pdf en 271.92 KBpdfDownload
SKG_ENG_G361_Q361_3VS_2VS_S3_S5_3VE_P3_PR300.pdf de 271.92 KBpdfDownload
EPD de 698.13 KBpdfDownload
Certificate VdS 3 Stars en 430.89 KBpdfDownload
EPD en 590.25 KBpdfDownload
Zertifikat VdS 3 Sterne de 430.89 KBpdfDownload

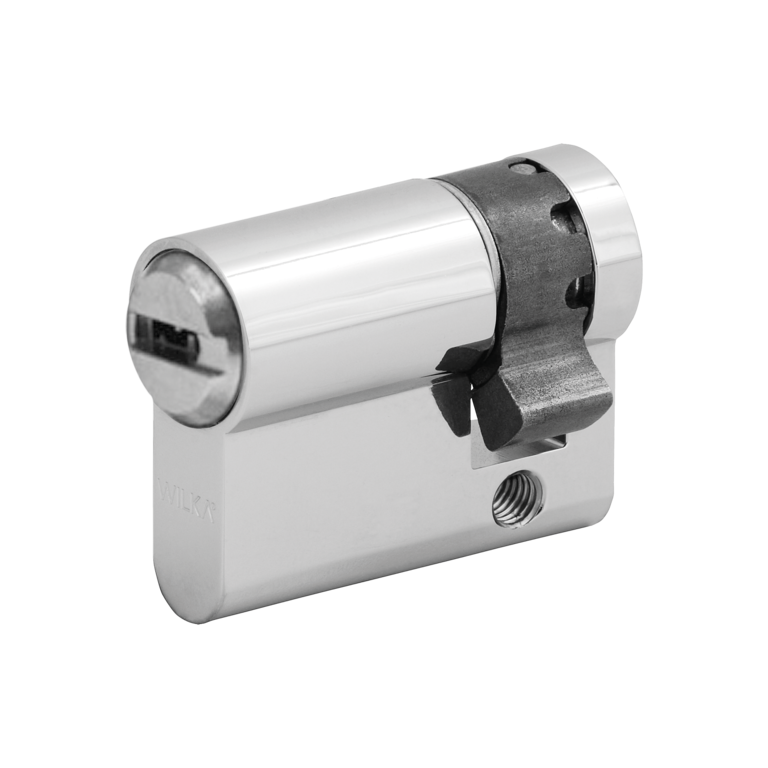

3610-produktfoto.png157.60 KBpngDownload

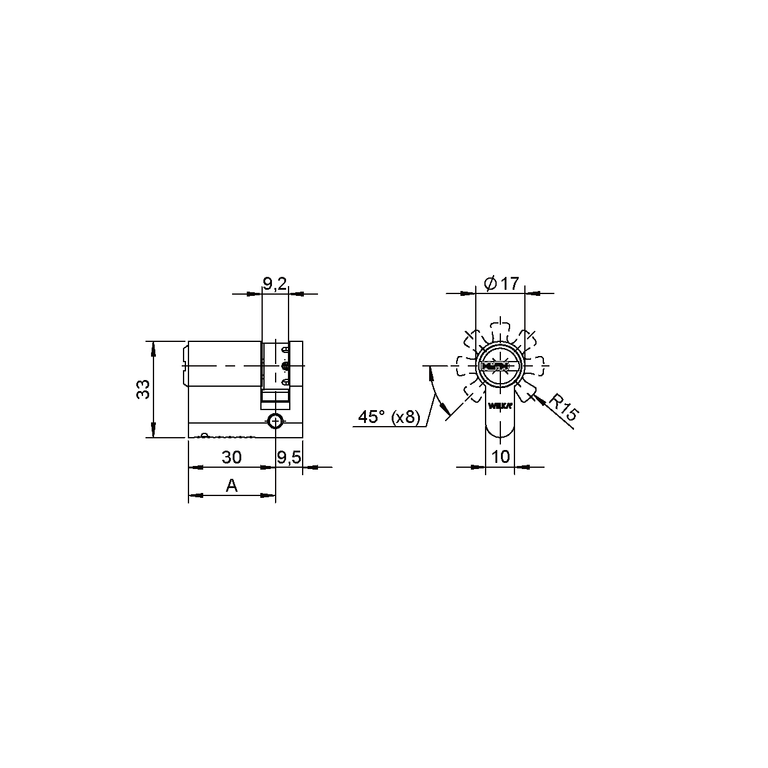

3610-techzeichnung.png30.47 KBpngDownload
