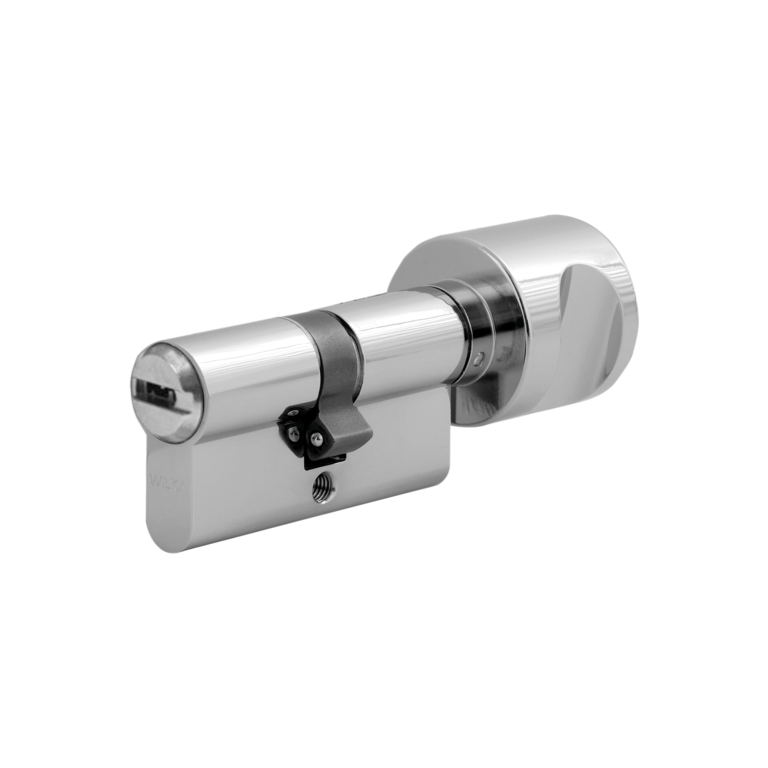

3607 Knob cylinder short

Skip slider
  • Knob cylinder short
  • Knob cylinder short
Knob cylinder short
  • Knob cylinder short
  • Knob cylinder short
Find a retailer now
Assignment Category3.2.2
Drilling protection (ABH)Optional
Drilling protection (ABH) typeVIII, IX, X
Emergency functionYes
Hardwearing designOptional
Inside BKnob side
Key InsertingHorizontal
Key with custom logoOptional
Knob on one sideYes

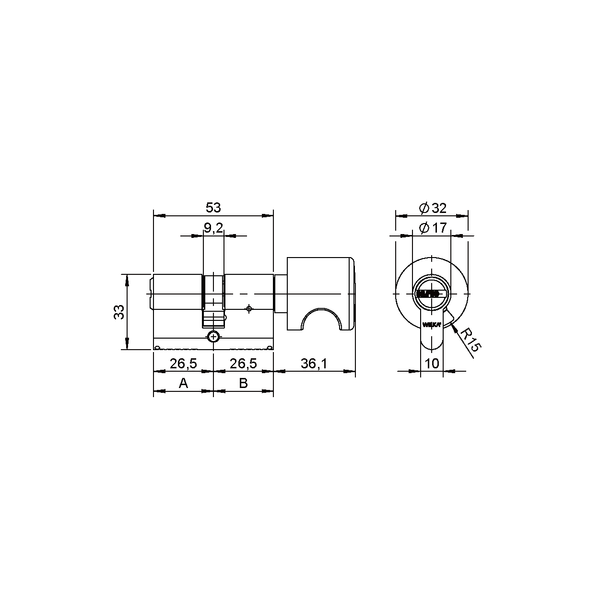

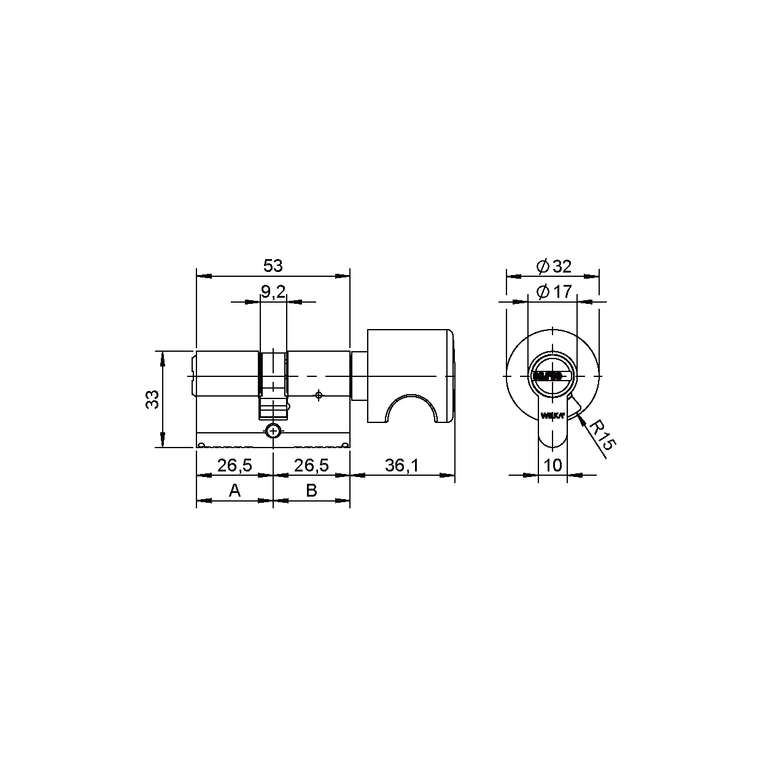

Maximum length A26,5 mm
Maximum length B26,5 mm
Minimum length A26,5 mm
Minimum length B26,5 mm
Number of pin tumblers5
Outside AOperating side
Picking resistanceYes
Seawater-resistant designOptional
Material / ColoringBrass nickel-plated matt
Material / Coloring specialBrass chrome polished, chrome matt, polished, matt brushed, black
Compatible SystemsStandard profile reversible key system, 3VS, 2VS, S3, S5

4

Results found

Show per page

DescriptionLanguageFile sizeFile type
EPD en 590.25 KBpdfDownload
EPD de 698.13 KBpdfDownload
3607-produktfoto.png93.11 KBpngDownload
3607-techzeichnung.png34.93 KBpngDownload

Compatible systems

Skip product slider
  • Reversible key system W3600 Reversible key system W3600

    Standard profile reversible key system Reversible key system W3600

  • Reversible key system 3VS Keying systems Reversible key system 3VS Keying systems

    3VS Reversible key system 3VS Keying systems

  • Reversible key system 2VS Keying systems Reversible key system 2VS Keying systems

    2VS Reversible key system 2VS Keying systems

  • Reversible customer keyway Carat S3 Reversible customer keyway Carat S3

    S3 Reversible customer keyway Carat S3

  • Reversible customer keyway Carat S5 Reversible customer keyway Carat S5

    S5 Reversible customer keyway Carat S5
