3606 Knob cylinder FZG

Skip slider
  • Knob cylinder FZG
  • Knob cylinder FZG
Knob cylinder FZG
  • Knob cylinder FZG
  • Knob cylinder FZG
Find a retailer now
Assignment Category3.2.2
DIN tested attack resistance class A or DOptional
DIN tested attack resistance class COptional
Drilling protection (ABH)Optional
Drilling protection (ABH) typeVIII, IX, X
Emergency functionYes
FunctionWith free-wheel function for transmission locks
FZGYes
Hardwearing designOptional
Inside BKnob side
Key InsertingHorizontal
Key with custom logoOptional
Knob on one sideYes
Length A and B can be combined arbitrarilyYes
Maximum length A90 mm
Maximum length B90 mm
Minimum length A30 mm
Minimum length B30 mm
Number of pin tumblers6
Outside AOperating side
Picking resistanceYes
Seawater-resistant designOptional
SKG certifiedOptional SKG** or SKG***
Special lengths on requestYes
Material / ColoringBrass nickel-plated matt
Material / Coloring specialBrass chrome polished, chrome matt, polished, matt brushed
Compatible SystemsStandard profile reversible key system, 3VS, 2VS, S3, S5

14

Results found

Show per page

DescriptionLanguageFile sizeFile type
DIN Certificate en 225.81 KBpdfDownload
DIN Zertifikat de 225.81 KBpdfDownload
Certificate SKG 2 Stars en 245.42 KBpdfDownload
Zertifikat SKG 2 Sterne de 245.42 KBpdfDownload
Certificate SKG 2 Stars en 271.38 KBpdfDownload
Zertifikat SKG 2 Sterne de 271.38 KBpdfDownload
Certificate SKG 3 Stars en 272.65 KBpdfDownload
Zertifikat SKG 3 Sterne de 272.65 KBpdfDownload
Certificate FZG en 212.96 KBpdfDownload
EPD de 698.13 KBpdfDownload
EPD en 590.25 KBpdfDownload
Zertifikat FZG de 212.96 KBpdfDownload

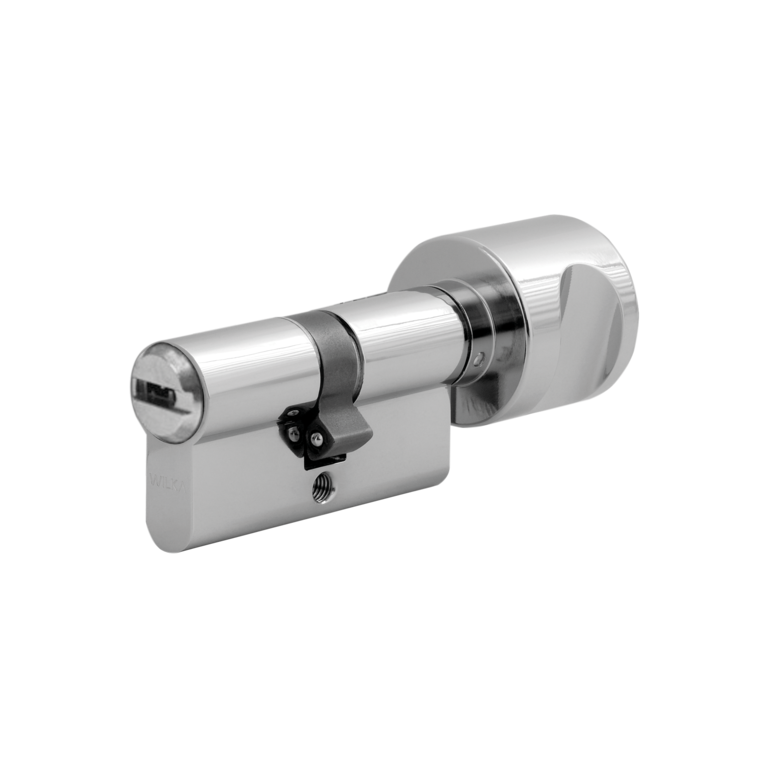

3606-produktfoto.png93.39 KBpngDownload

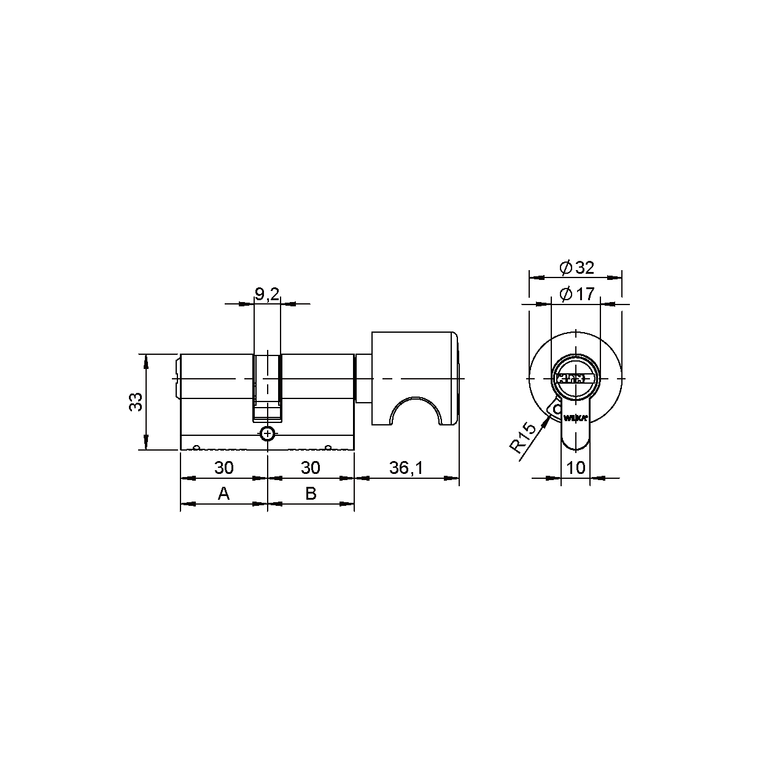

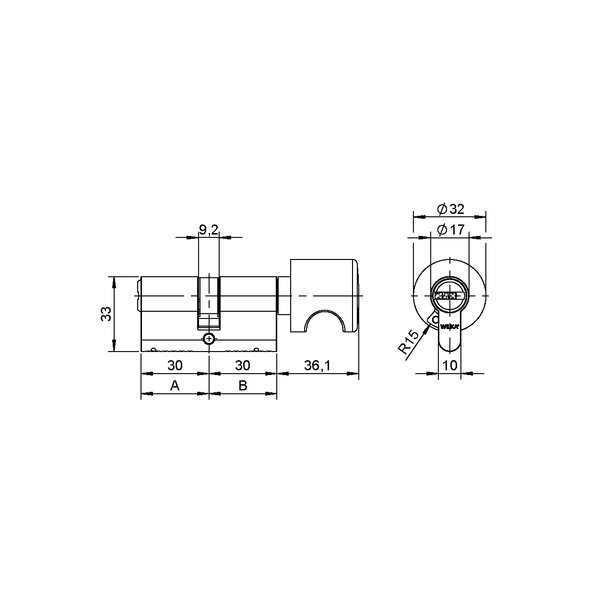

3606-techzeichnung.png33.05 KBpngDownload
