3600 Double cylinder

Skip slider
  • Double cylinder
  • Double cylinder
Double cylinder
  • Double cylinder
  • Double cylinder
Find a retailer now
Assignment Category3.2.1
DIN tested attack resistance class A or DOptional
DIN tested attack resistance class COptional
Drilling protection (ABH)Optional
Drilling protection (ABH) typeVIII, IX, X
Hardwearing designOptional
Key InsertingHorizontal
Key with custom logoOptional
Length A and B can be combined arbitrarilyYes
Maximum length A90 mm
Maximum length B90 mm
Minimum length A30 mm
Minimum length B30 mm
Number of pin tumblers6
Picking resistanceYes
Seawater-resistant designOptional
SKG certifiedOptional SKG** or SKG***
Special lengths on requestYes
VdS certifiedOptional VdS***
Material / ColoringBrass nickel-plated matt
Material / Coloring specialBrass chrome polished, chrome matt, polished, matt brushed, black
Compatible SystemsStandard profile reversible key system, 3VS, 2VS, S3, S5

12

Results found

Show per page

DescriptionLanguageFile sizeFile type
DIN Certificate en 225.81 KBpdfDownload
DIN Zertifikat de 225.81 KBpdfDownload
Certificate SKG 2 Stars en 244.65 KBpdfDownload
Zertifikat SKG 2 Sterne de 244.65 KBpdfDownload
Zertifikat SKG 2 Sterne de 274.81 KBpdfDownload
Certificate SKG 2 Stars en 274.81 KBpdfDownload
EPD de 698.13 KBpdfDownload
Certificate VdS 3 Stars en 430.89 KBpdfDownload
EPD en 590.25 KBpdfDownload
Zertifikat VdS 3 Sterne de 430.89 KBpdfDownload

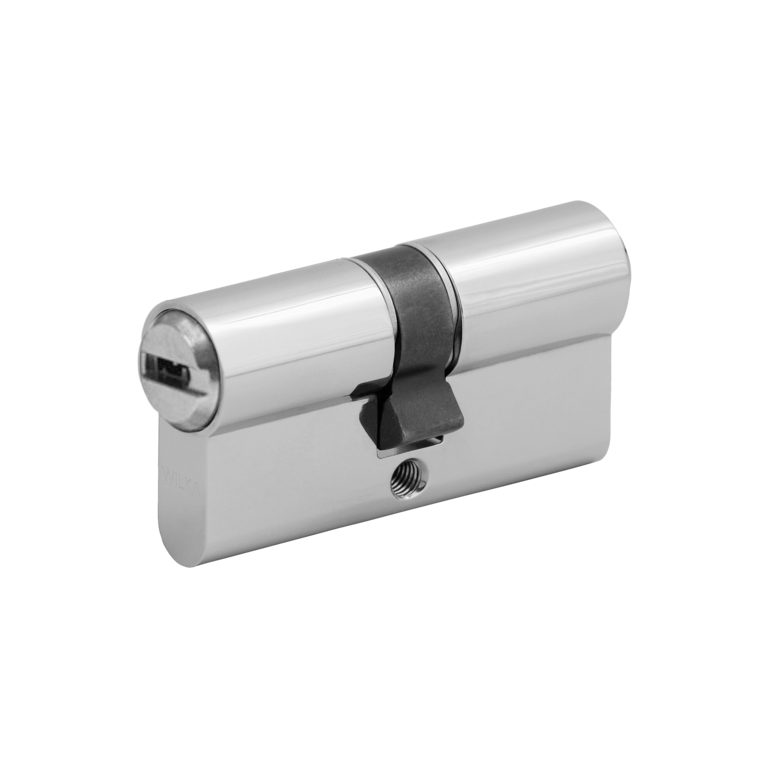

3600-produktfoto.png102.17 KBpngDownload

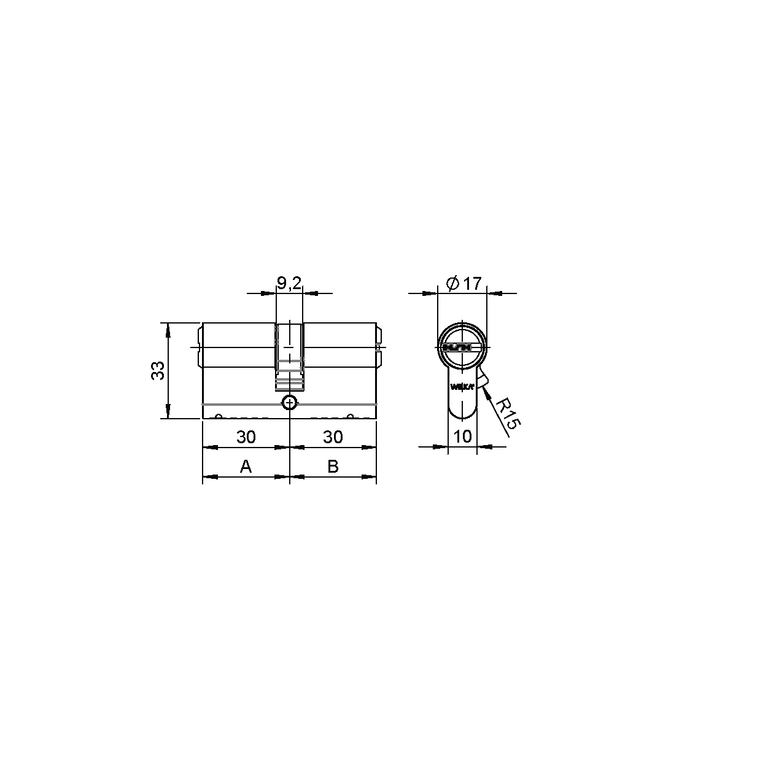

3600-techzeichnung.png24.78 KBpngDownload

Compatible systems

Skip product slider
  • Reversible key system W3600 Reversible key system W3600

    Standard profile reversible key system Reversible key system W3600

  • Reversible key system 3VS Keying systems Reversible key system 3VS Keying systems

    3VS Reversible key system 3VS Keying systems

  • Reversible key system 2VS Keying systems Reversible key system 2VS Keying systems

    2VS Reversible key system 2VS Keying systems

  • Reversible customer keyway Carat S3 Reversible customer keyway Carat S3

    S3 Reversible customer keyway Carat S3

  • Reversible customer keyway Carat S5 Reversible customer keyway Carat S5

    S5 Reversible customer keyway Carat S5
