2VS Reversible key system 2VS Keying systems
Skip slider Reversible key system 2VS Keying systems
End of slider
- Fixing screw: M5 x 80 mm
- Key: Nickel silver
- Key design for utilsation with common security fittings: Yes
- Key Inserting: Horizontal
- Keying systems: Yes
According to DIN 18252 Yes
According to EN 1303 Yes
| Length A and B can be combined arbitrarily | Yes |
| Maximum length A | 90 mm |
| Maximum length B | 90 mm |
| Minimum length A | 30 mm |
| Minimum length B | 30 mm |
| Assignment Category | 3.1.2,1.1 |
| Suitable products | 3600, 3601, 3603, 3605, 3606, 3607, 3608, 3610, 3612, 3613, 3614, 3615, 3616, 3619, 3620, 3621, 3623, 3624, 3630, 3631, 3632, 3650, 3651, 3652, 3653, 3654, 3655, 3656, 3657, 3660, 3663, 3673, 3680, 3681, 3683, 3684, 3685, 3686, 3687, 3688, 3689, 3690, 3692 |
9
Results foundShow per page
| Description | Language | File size | File type | |
|---|---|---|---|---|
| DIN Certificate | en | 225.81 KB | Download | |
| DIN Zertifikat | de | 225.81 KB | Download | |
| Certificate SKG 2 Stars | en | 274.81 KB | Download | |
| Zertifikat SKG 2 Sterne | de | 274.81 KB | Download | |
| EPD | en | 590.25 KB | Download | |
| EPD | de | 698.13 KB | Download | |

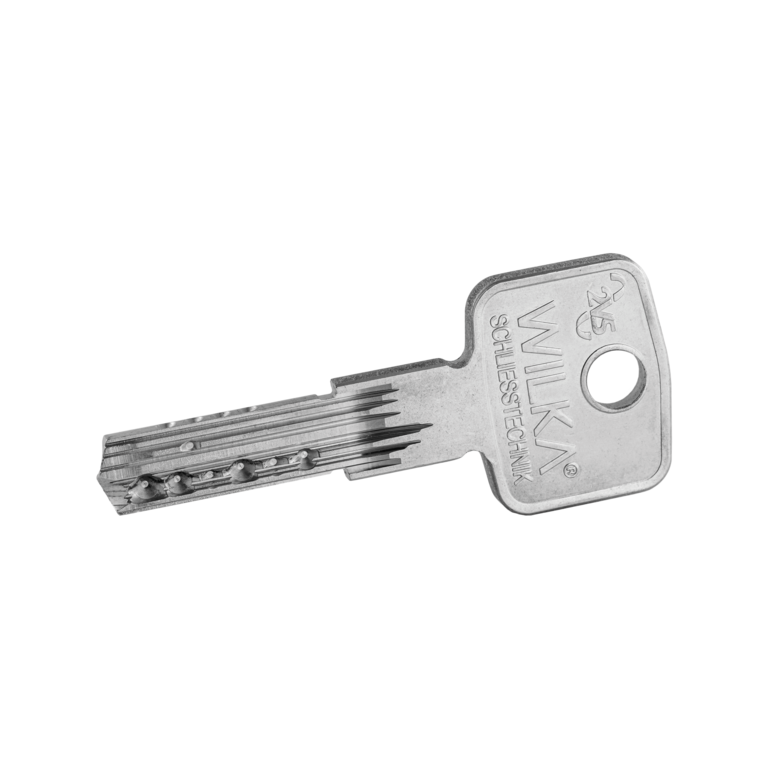

| 2vs-schluessel-profil-produktfoto.png | 95.93 KB | png | Download | |

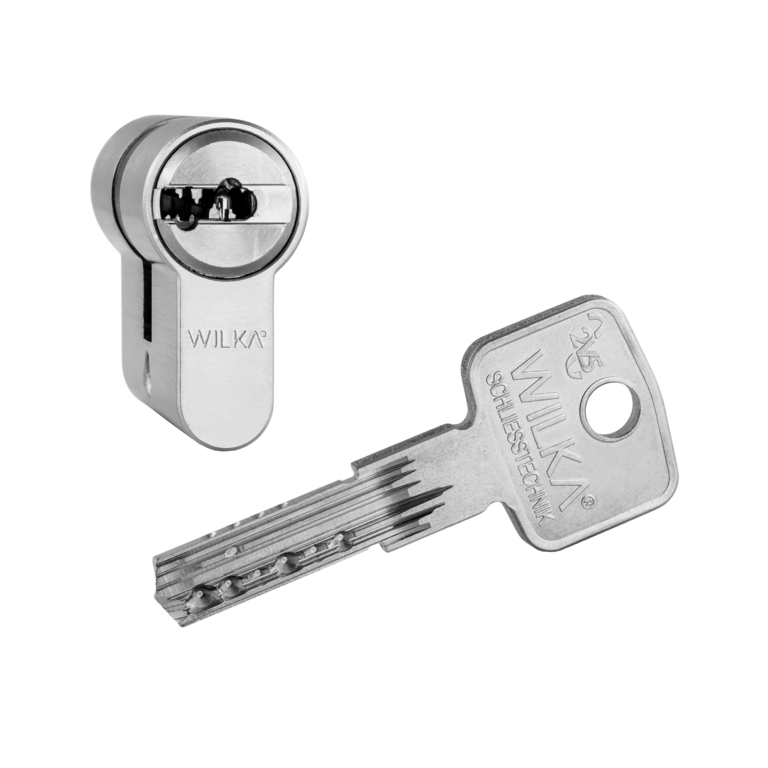

| 2vs-profil-produktfoto.png | 156.53 KB | png | Download | |

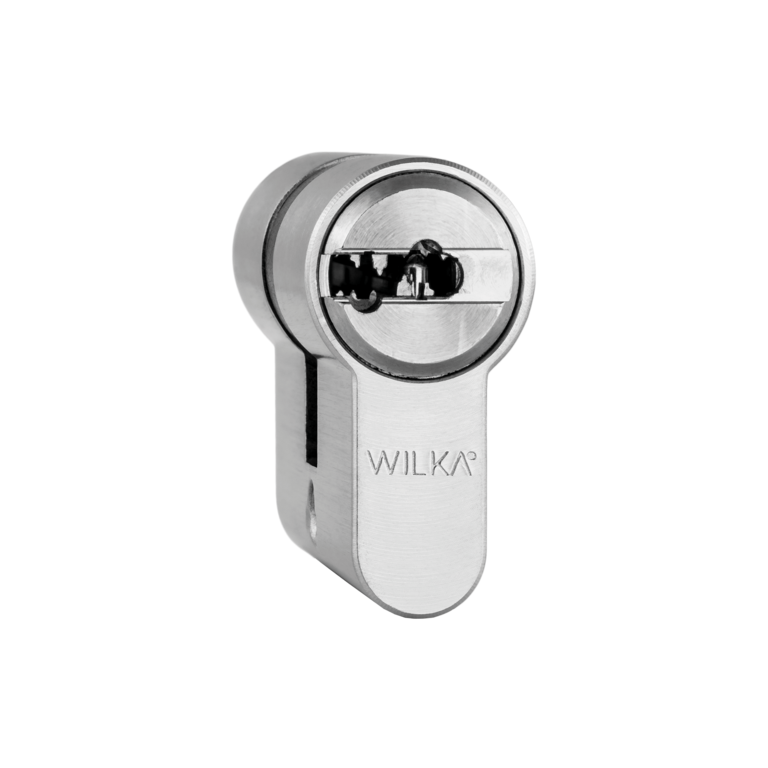

| 2vs-zylinder-profil-produktfoto.png | 107.05 KB | png | Download |
| DIN tested attack resistance class A or D | Optional |
| Drilling protection (ABH) | Optional |
| Drilling protection (ABH) type | IX, X |
| Hardened steel insert | Optional |
| Hardwearing design | Optional |
| Predetermined breaking points as pull protection | Optional |
| Seawater-resistant design | Optional |
| SKG certified | Optional SKG** or SKG*** |
| Special lengths on request | Yes |
| Material / Coloring special | Brass chrome polished, chrome matt, polished, matt brushed, black |
