1489 Double cylinder one side emergency opening other side with locking funktion

Skip slider
  • Double cylinder one side emergency opening other side with locking funktion
  • Double cylinder one side emergency opening other side with locking funktion
Double cylinder one side emergency opening other side with locking funktion
  • Double cylinder one side emergency opening other side with locking funktion
  • Double cylinder one side emergency opening other side with locking funktion
Find a retailer now
Assignment Category3.2.1
Drilling protection (ABH)Optional
Drilling protection (ABH) typeI, III, V
Emergency opening on one sideYes
Hardwearing designOptional
Inside BOperating side
Key InsertingVertical
Key with custom logoOptional
Length A and B can be combined arbitrarilyYes
Maximum length A90 mm
Maximum length B90 mm
Minimum length A26,5 mm
Minimum length B26,5 mm
Number of pin tumblers6
Outside AEmergency opening side
Picking resistanceYes
Seawater-resistant designOptional
Special lengths on requestYes
Material / ColoringBrass nickel-plated matt
Material / Coloring specialBrass chrome polished, chrome matt, polished, matt brushed
Compatible SystemsStandard profile conventional, SI6, S1, S4

4

Results found

Show per page

DescriptionLanguageFile sizeFile type
EPD de 698.13 KBpdfDownload
EPD en 590.25 KBpdfDownload

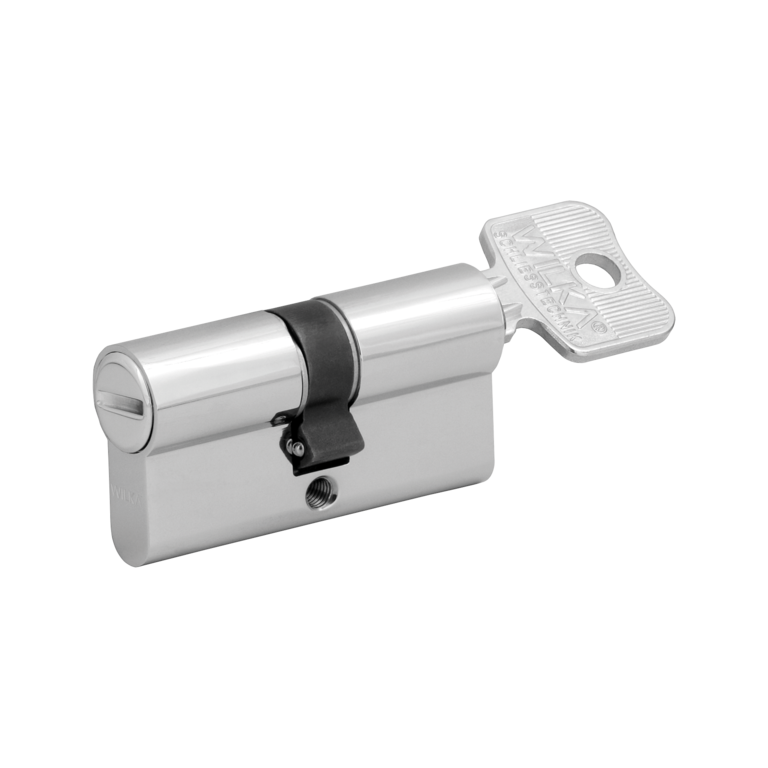

1489-produktfoto.png103.39 KBpngDownload

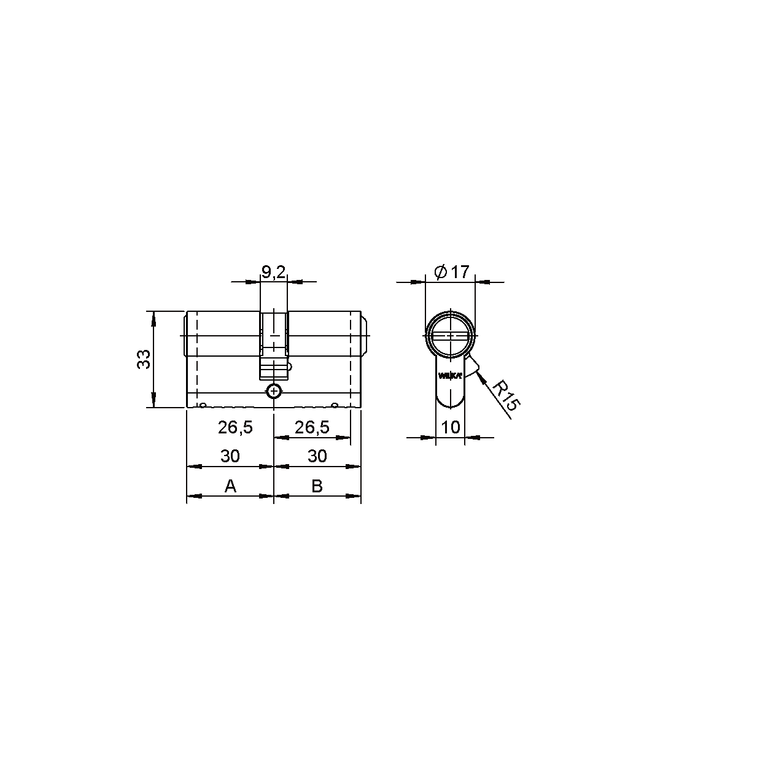

1489-techzeichnung.png28.30 KBpngDownload

Compatible systems

Skip product slider
  • Standard cylinder Standard cylinder

    Standard profile conventional Standard cylinder

  • Verical system SI6 Keying systems Verical system SI6 Keying systems

    SI6 Verical system SI6 Keying systems

  • Verical customer keyway Carat S1 Verical customer keyway Carat S1

    S1 Verical customer keyway Carat S1

  • Verical customer keyway Carat S4 Verical customer keyway Carat S4

    S4 Verical customer keyway Carat S4
