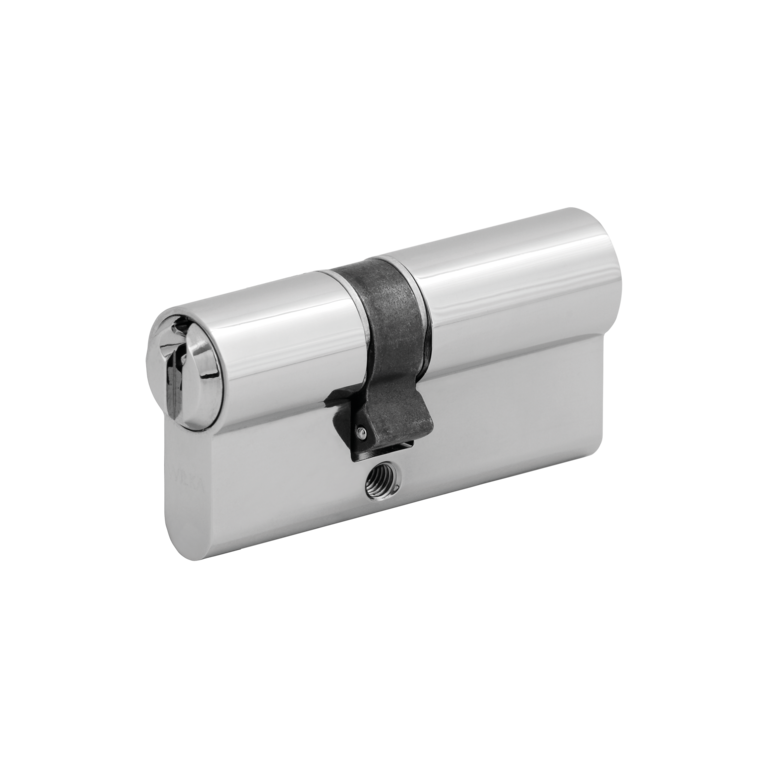

1483 Double cylinder with emergency function asymmetric
Skip slider Double cylinder with emergency function asymmetric
End of slider
| Assignment Category | 3.2.1 |
| Drilling protection (ABH) | Optional |
| Drilling protection (ABH) type | I, III, V |
| Emergency function | Yes |
| Function | Cylinder will operate even if a key has been left in the cylinder on the opposite side |
| Hardwearing design | Optional |
| Key Inserting | Vertical |
| Key with custom logo | Optional |

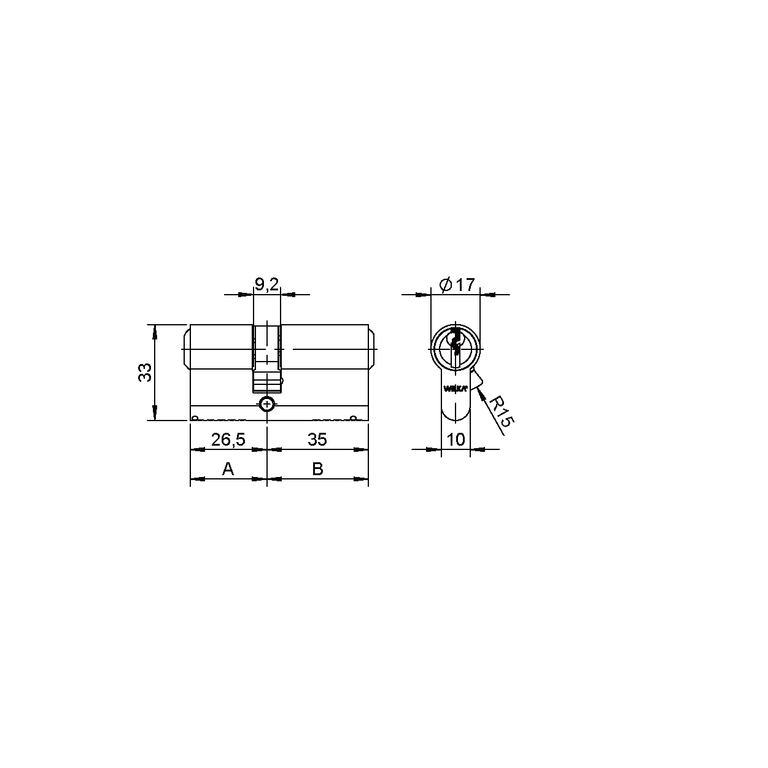

| Maximum length A | 26 mm |
| Maximum length B | 60 mm |
| Minimum length A | 26 mm |
| Minimum length B | 35 mm |
| Number of pin tumblers | 5 |
| Picking resistance | Yes |
| Seawater-resistant design | Optional |
| Special lengths on request | Yes |
| Material / Coloring | Brass nickel-plated matt |
| Material / Coloring special | Brass chrome polished, chrome matt, polished, matt brushed, black |
| Compatible Systems | Standard profile conventional, SI6, S1, S4 |
