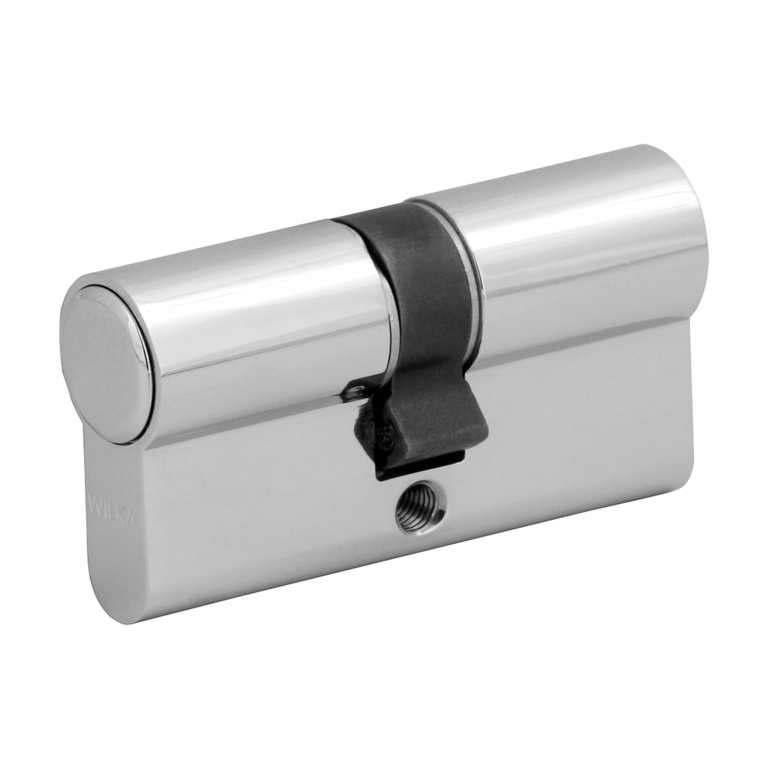

1480 Double cylinder one side blind other side with locking function

Skip slider
  • Double cylinder one side blind other side with locking function
  • Double cylinder one side blind other side with locking function
Double cylinder one side blind other side with locking function
  • Double cylinder one side blind other side with locking function
  • Double cylinder one side blind other side with locking function
Find a retailer now
Assignment Category3.2.1
Blind on one sideYes
Drilling protection (ABH)Optional
Drilling protection (ABH) typeI, III, V
Hardwearing designOptional
Inside BClosing side
Key InsertingVertical
Key with custom logoOptional
Length A and B can be combined arbitrarilyYes
Maximum length A90 mm
Maximum length B90 mm
Minimum length A26,5 mm
Minimum length B26,5 mm
Number of pin tumblers5, 6
Outside ABlind side
Picking resistanceYes
Seawater-resistant designOptional
Special lengths on requestYes
Material / ColoringBrass nickel-plated matt
Material / Coloring specialBrass chrome polished, chrome matt, polished, matt brushed, black
Compatible SystemsStandard profile conventional, SI6, S1, S4

4

Results found

Show per page

DescriptionLanguageFile sizeFile type
EPD en 590.25 KBpdfDownload
EPD de 698.13 KBpdfDownload
1480-produktfoto.png168.82 KBpngDownload

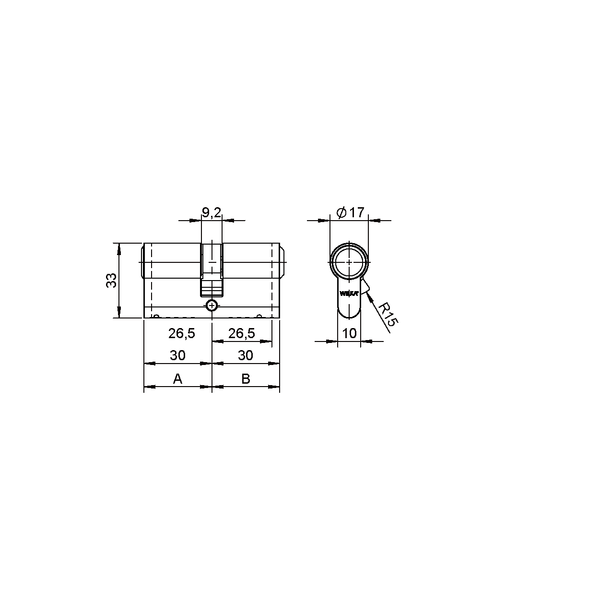

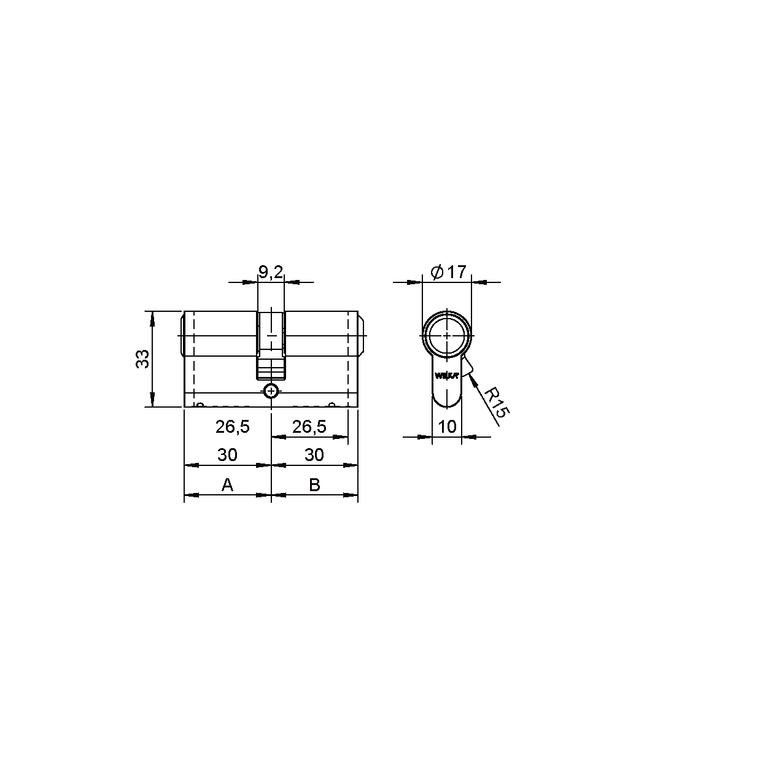

1480-techzeichnung.png27.88 KBpngDownload

Compatible systems

Skip product slider
  • Standard cylinder Standard cylinder

    Standard profile conventional Standard cylinder

  • Verical system SI6 Keying systems Verical system SI6 Keying systems

    SI6 Verical system SI6 Keying systems

  • Verical customer keyway Carat S1 Verical customer keyway Carat S1

    S1 Verical customer keyway Carat S1

  • Verical customer keyway Carat S4 Verical customer keyway Carat S4

    S4 Verical customer keyway Carat S4
