1415 Half cylinder with defined free-wheel zone 90°/180°/270°

Skip slider
  • Half cylinder with defined free-wheel zone 90°/180°/270°
  • Half cylinder with defined free-wheel zone 90°/180°/270°
Half cylinder with defined free-wheel zone 90°/180°/270°
  • Half cylinder with defined free-wheel zone 90°/180°/270°
  • Half cylinder with defined free-wheel zone 90°/180°/270°
Find a retailer now
Assignment Category3.2.3
Drilling protection (ABH)Optional
Drilling protection (ABH) typeI, III, V
FunctionWith defined free-wheel zone 90°/180°/270°
Hardwearing designOptional
Key InsertingVertical
Key with custom logoOptional
Maximum length A60 mm
Maximum length B10 mm
Minimum length A30 mm
Minimum length B10 mm
Number of pin tumblers6
Picking resistanceYes
Seawater-resistant designOptional
Special lengths on requestYes
Material / ColoringBrass nickel-plated matt
Material / Coloring specialBrass chrome polished, chrome matt, polished, matt brushed, black
Compatible SystemsStandard profile conventional, SI6, S1, S4

4

Results found

Show per page

DescriptionLanguageFile sizeFile type
EPD en 590.25 KBpdfDownload
EPD de 698.13 KBpdfDownload

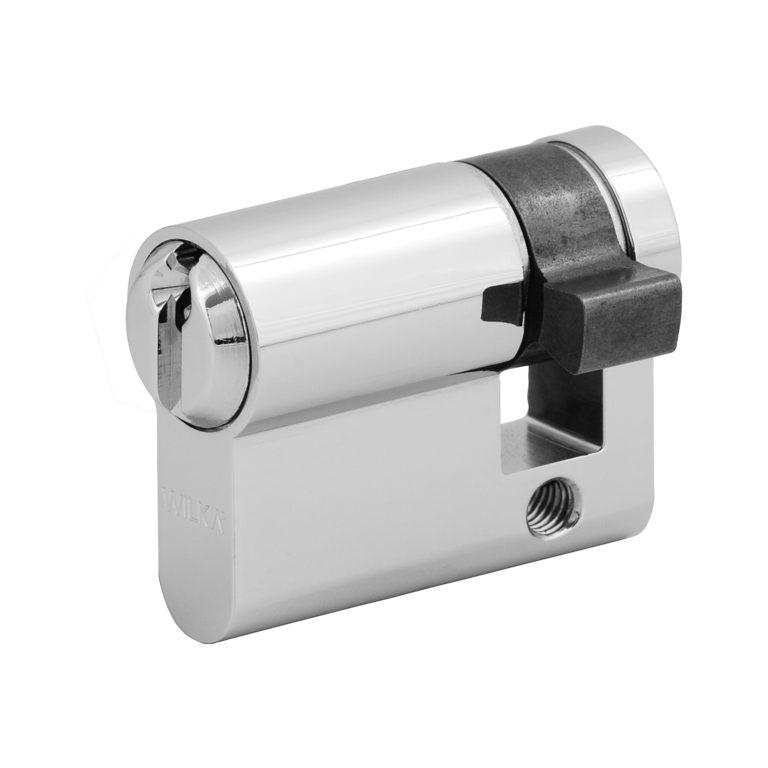

1415-produktfoto.png117.66 KBpngDownload

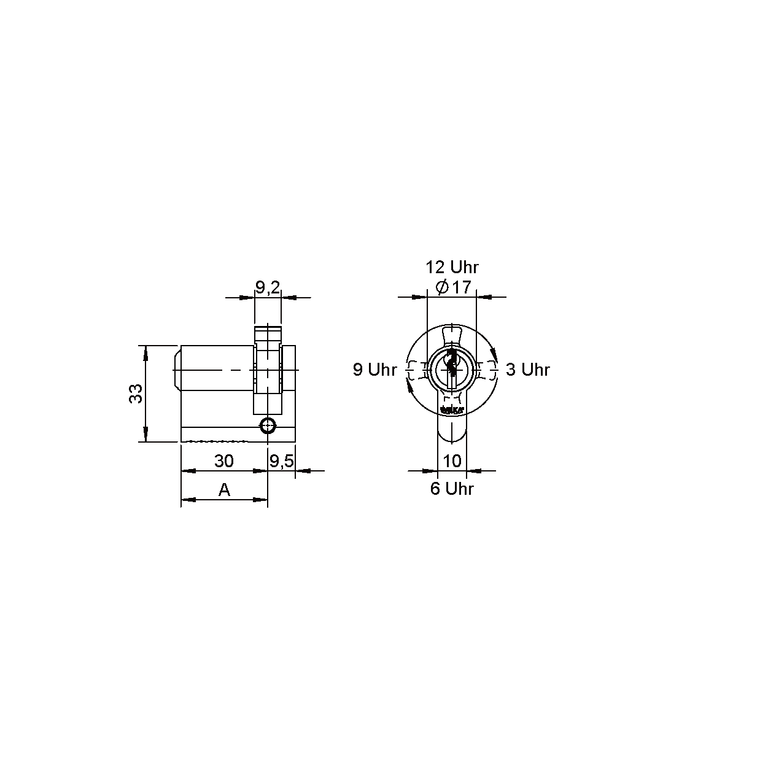

1415-techzeichnung.png30.09 KBpngDownload

Compatible systems

Skip product slider
  • Standard cylinder Standard cylinder

    Standard profile conventional Standard cylinder

  • Verical system SI6 Keying systems Verical system SI6 Keying systems

    SI6 Verical system SI6 Keying systems

  • Verical customer keyway Carat S1 Verical customer keyway Carat S1

    S1 Verical customer keyway Carat S1

  • Verical customer keyway Carat S4 Verical customer keyway Carat S4

    S4 Verical customer keyway Carat S4
