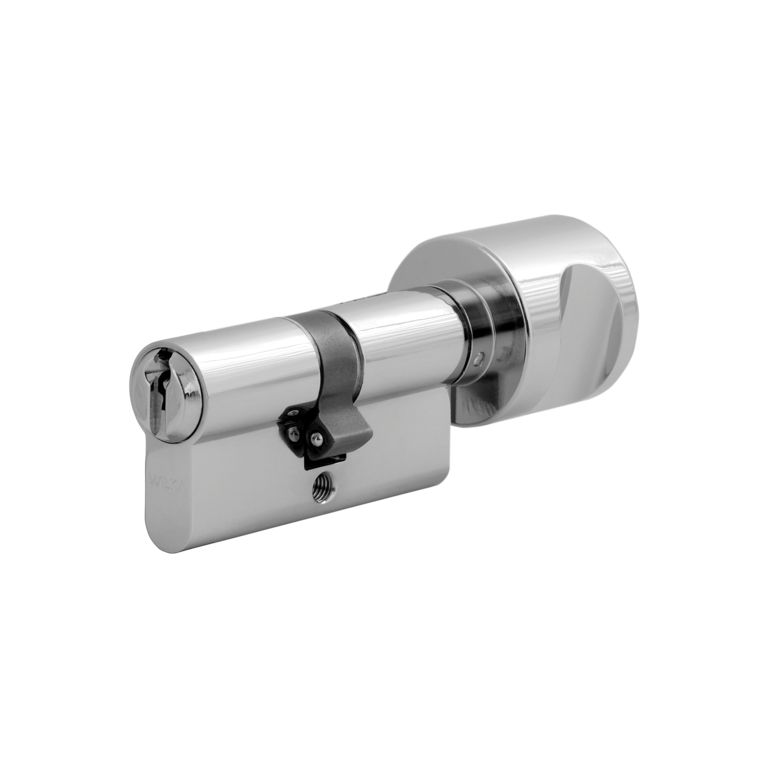

1406 Knob cylinder FZG

Knob cylinder FZG
Find a retailer now
Assignment Category3.2.2
DIN tested attack resistance class A or DOptional
Drilling protection (ABH)Optional
Drilling protection (ABH) typeI, III, V
Emergency functionYes
FunctionWith free-wheel function for transmission locks
FZGYes
Hardwearing designOptional
Inside BKnob side
Key InsertingVertical
Key with custom logoOptional
Knob on one sideYes
Length A and B can be combined arbitrarilyYes
Maximum length A90 mm
Maximum length B90 mm
Minimum length A30 mm
Minimum length B30 mm
Number of pin tumblers6
Outside AOperating side
Picking resistanceYes
Seawater-resistant designOptional
SKG certifiedOptional SKG** or SKG***
Special lengths on requestYes
Material / ColoringBrass nickel-plated matt
Material / Coloring specialBrass chrome polished, chrome matt, polished, matt brushed, black
Compatible SystemsStandard profile conventional, SI6, S1, S4

15

Results found

Show per page

DescriptionLanguageFile sizeFile type
DIN Certificate en 228.46 KBpdfDownload
DIN Zertifikat de 228.46 KBpdfDownload
Zertifikat SKG 2 Sterne de 275.34 KBpdfDownload
Certificate SKG 2 Stars en 275.34 KBpdfDownload
Certificate SKG 2 Stars en 271.32 KBpdfDownload
Zertifikat SKG 2 Sterne de 271.32 KBpdfDownload
Certificate SKG 3 Stars en 272.47 KBpdfDownload
Zertifikat SKG 3 Sterne de 272.47 KBpdfDownload
Zertifikat SKG 3 Sterne de 272.60 KBpdfDownload
Certificate SKG 3 Stars en 272.60 KBpdfDownload
EPD de 698.13 KBpdfDownload
Certificate FZG en 212.96 KBpdfDownload
EPD en 590.25 KBpdfDownload
Zertifikat FZG de 212.96 KBpdfDownload
1406-produktfoto.png90.32 KBpngDownload

Compatible systems

Skip product slider
  • Standard cylinder Standard cylinder

    Standard profile conventional Standard cylinder

  • Verical system SI6 Keying systems Verical system SI6 Keying systems

    SI6 Verical system SI6 Keying systems

  • Verical customer keyway Carat S1 Verical customer keyway Carat S1

    S1 Verical customer keyway Carat S1

  • Verical customer keyway Carat S4 Verical customer keyway Carat S4

    S4 Verical customer keyway Carat S4
