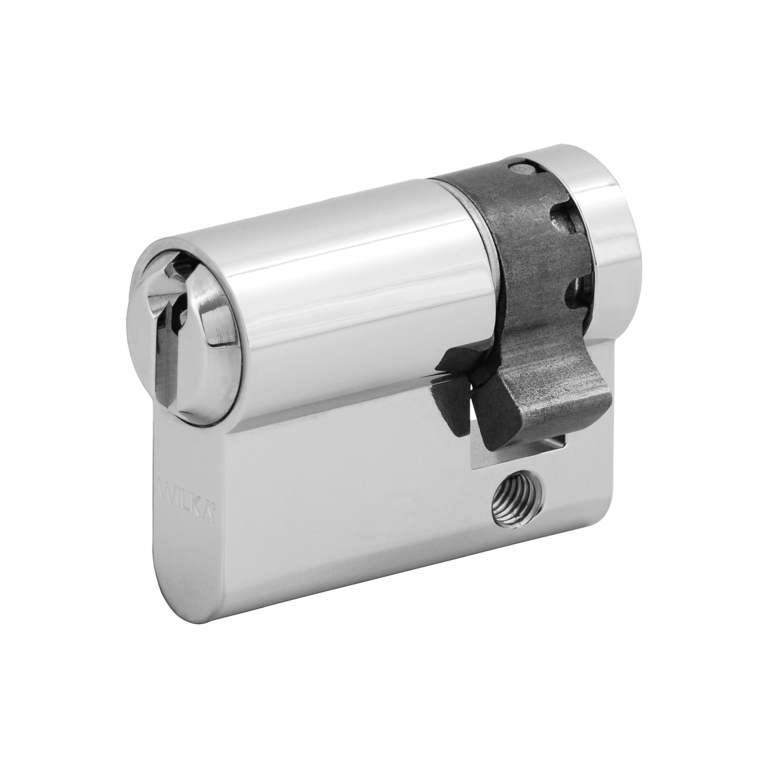

1314 Half cylinder with key retaining
Skip slider Half cylinder with key retaining
End of slider
| Assignment Category | 3.2.3 |
| Cam | Adjustibale in 8 ways |
| Drilling protection (ABH) | Optional |
| Drilling protection (ABH) type | I, III, V |
| Function | Due to the limited closing way, the key will be kept in the cylinder until the door has been locked |
| Hardwearing design | Optional |
| Key Inserting | Vertical |
| Key retaining | Yes |
| Key with custom logo | Optional |

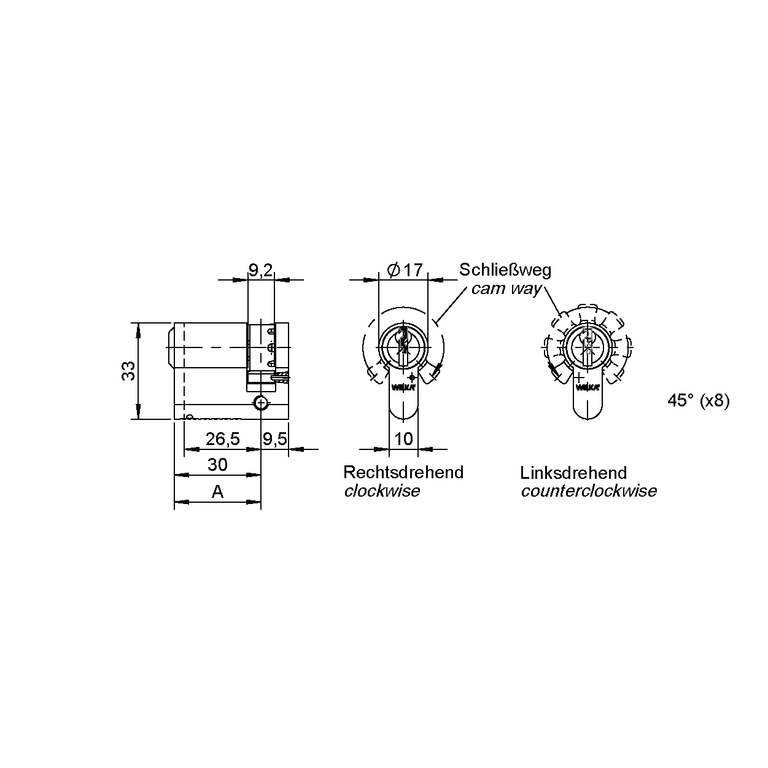

| Maximum length A | 90 mm |
| Maximum length B | 10 mm |
| Minimum length A | 26,5 mm |
| Minimum length B | 10 mm |
| Number of pin tumblers | 5, 6 |
| Picking resistance | Yes |
| Seawater-resistant design | Optional |
| Special lengths on request | Yes |
| Material / Coloring | Brass nickel-plated matt |
| Material / Coloring special | Brass chrome polished, chrome matt, polished, matt brushed |
| Compatible Systems | Standard profile conventional, SI6, S1, S4 |
Compatible systems
Skip product slider
Standard profile conventional Standard cylinder
View product
SI6 Verical system SI6 Keying systems
View product
S1 Verical customer keyway Carat S1
View product
S4 Verical customer keyway Carat S4
View product
End of product slider
