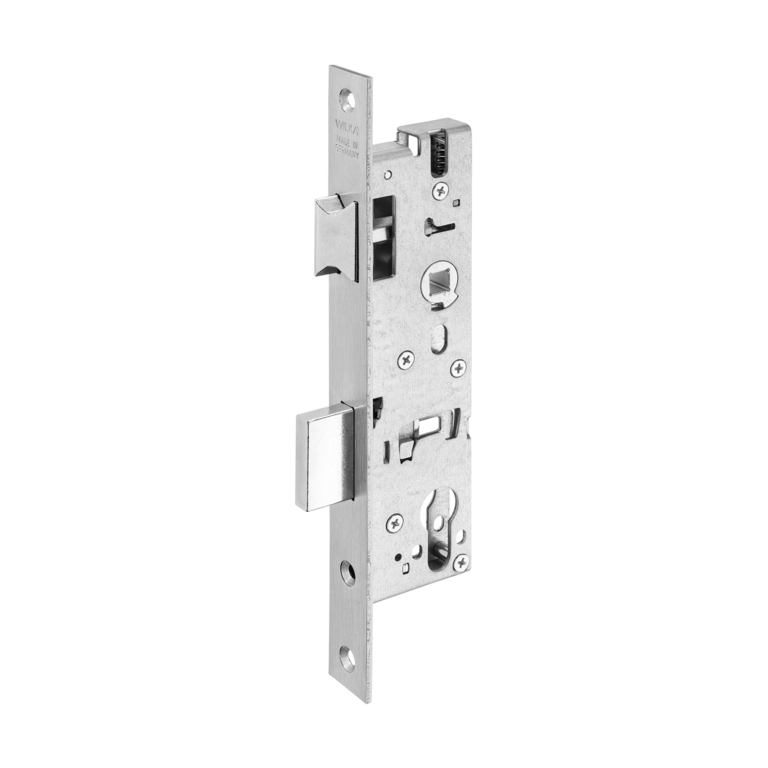

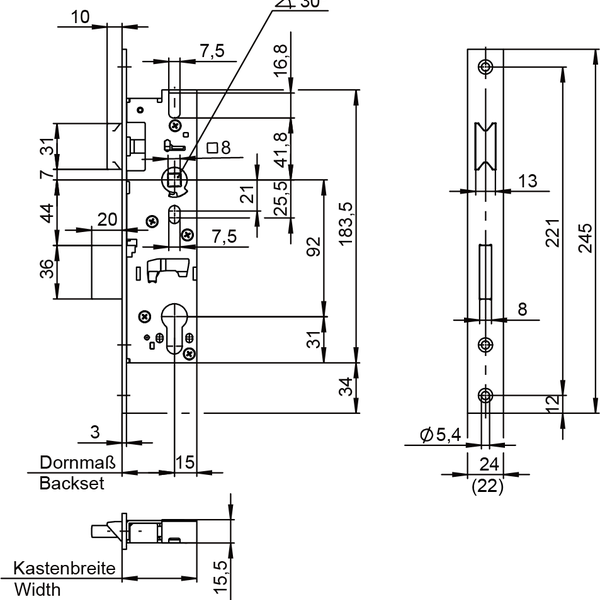

1438 Mortise lock for tubular frame doors
Skip slider Mortise lock for tubular frame doors
End of slider
| Backset | 25, 30, 35, 40, 45, 50 mm |
| Backset (1) | 15 mm |
| Certified according to EN 12209 | Yes |
| Controlled latch bolt stop | Optional |
| Cylinder | Profile cylinder / Swiss round cylinder |
| Deadbolt extended | 3 mm / 5 mm |
| Deadbolt monitoring device (incl. 10 m cable) | Optional |
| Deadbolt throw | 20 mm |
| Deadbolt turn | 1-turn |
| Deadbolt type | Standard |
| DIN Direction | DL / DR |
| Direction must be stated | No |
| Distance | 92 mm |
| Flat forend (special design) | 16 x 3, 20 x 3, 22 x 3 mm |
| Flat forend (standard design) | 24 x 3 mm |
| Follower | 8, 9, 10 mm |
| Follower monitoring device (incl. 8 m cable) | Optional |
| Follower turning angle | 30° |
| For burglar-resistant doors according to EN 1627-1630 | Optional |
| Forend length | 245, 270 mm |
| Forend material | Stainless steel / Iron galvanised |
| Latch bolt exclusion | 10 mm |
| Latch bolt extended (optional) | 3 mm / 5 mm |
| Latch bolt type | Prism latch bolt |
| Latch lever function | Yes |
| Lock case depth | 15,5 mm |
| Lock case height | 183,5 mm |
| Lock case material | Steel galvanised |
| Lock case widths | Backset + 15 mm |
| Notice U shaped forend | All U-shaped forends are delivered with end caps, Backset changes by -1 mm for U-shaped forends |

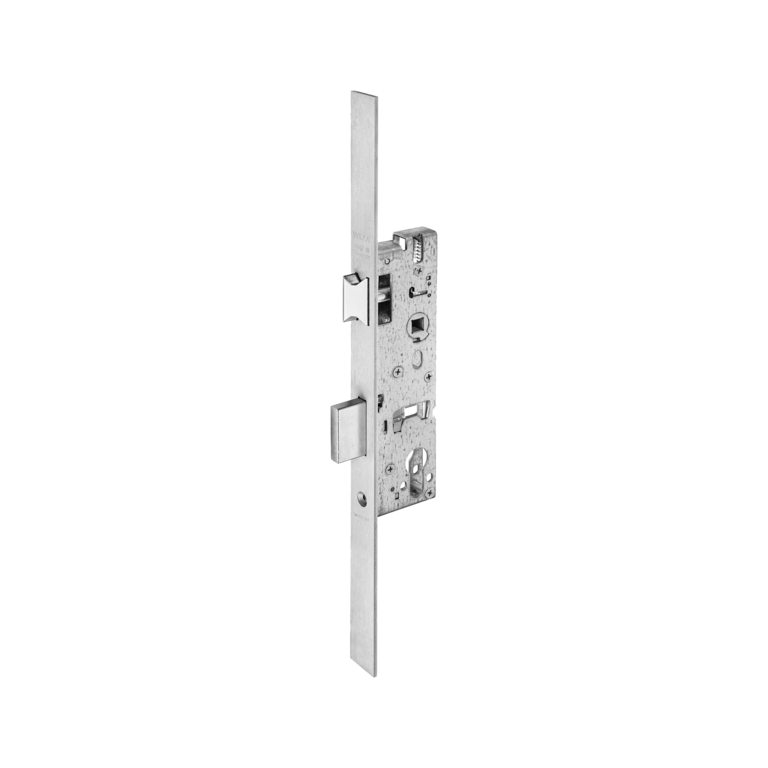

| Renovation forend | Optional (380 mm, no screw holes) |
| Reversible latch bolt | Yes, delivered as DIN left |
| U-shaped forend (special design) | 22 x 6 mm |
| U-shaped forend (standard design) | 24 x 6 mm |
| Usage | Tubular frame doors made of aluminium and steel |
| Assignment category | 4.1.1.1 |
| Series | Tubular frame series |
| SKG** certified available | Optional (Item 1738) |
| Suitable striking plates | 9306, 9307, 9308, 9309, 9319, 9320, 9321, 9322, 9333, 9334 |
