038F Mortise latch lock for tubular frame doors
Skip slider Mortise latch lock for tubular frame doors
End of slider
| Assignment category | 4.1.1.3 |
| Backset | 25, 30, 35, 40, 45 mm |
| Backset (1) | 15 mm |
| Certified according to EN 12209 | Yes |
| DIN Direction | DL / DR |
| Direction must be stated | No |
| Flat forend (special design) | 16 x 3, 20 x 3, 22 x 3 mm |
| Flat forend (standard design) | 24 x 3 mm |
| Follower | 8, 9, 10 mm |
| Follower monitoring device (incl. 8 m cable) | Optional |
| Follower turning angle | 30° |
| Forend length | 170 mm |
| Forend material | Stainless steel / Iron galvanised |
| Latch bolt exclusion | 10 mm |
| Latch bolt extended (optional) | 3 mm / 5 mm |
| Latch bolt type | Prism latch bolt |
| Lock case depth | 15,5 mm |
| Lock case height | 103 mm |
| Lock case material | Steel galvanised |
| Lock case widths | Backset + 15 mm |
| Notice U shaped forend | All U-shaped forends are delivered with end caps, Backset changes by -1 mm for U-shaped forends |
| Reversible latch bolt | Yes, delivered as DIN left |
| Suitable striking plates | 9316, 9317 |
| U-shaped forend (special design) | 22 x 6 mm |
| U-shaped forend (standard design) | 24 x 6 mm |
| Usage | Tubular frame doors made of aluminium and steel |
| Series | 038F |
13
Results foundShow per page
| Description | Language | File size | File type | |
|---|---|---|---|---|
| Brochure Locks for metal frame doors | en | 5.59 MB | Download | |
| Prospekt Rohrrahmenschlösser | de | 5.59 MB | Download | |
| Test certificate EN 12209 | en | 263.57 KB | Download | |
| Prüfzeugnis nach EN 12209 | pl | 263.57 KB | Download | |
| Prüfzeugnis nach EN 12209 | de | 263.57 KB | Download | |
| VdS Anerkennung - Einbruchmeldeanlagen der Klasse C | de | 1.30 MB | Download | |
| VdS approval - Class C burglar alarm systems | en | 1.30 MB | Download | |
| VdS Anerkennung - Einbruchmeldeanlagen der Klasse C | pl | 1.30 MB | Download | |
| Installation instruction Latch reverse | en | 560.57 KB | Download | |
| Montageanleitung Falle umlegen | pl | 560.57 KB | Download | |
| Montageanleitung Falle umlegen | de | 560.57 KB | Download | |
| 038f-produktfoto.png | 83.50 KB | png | Download | |

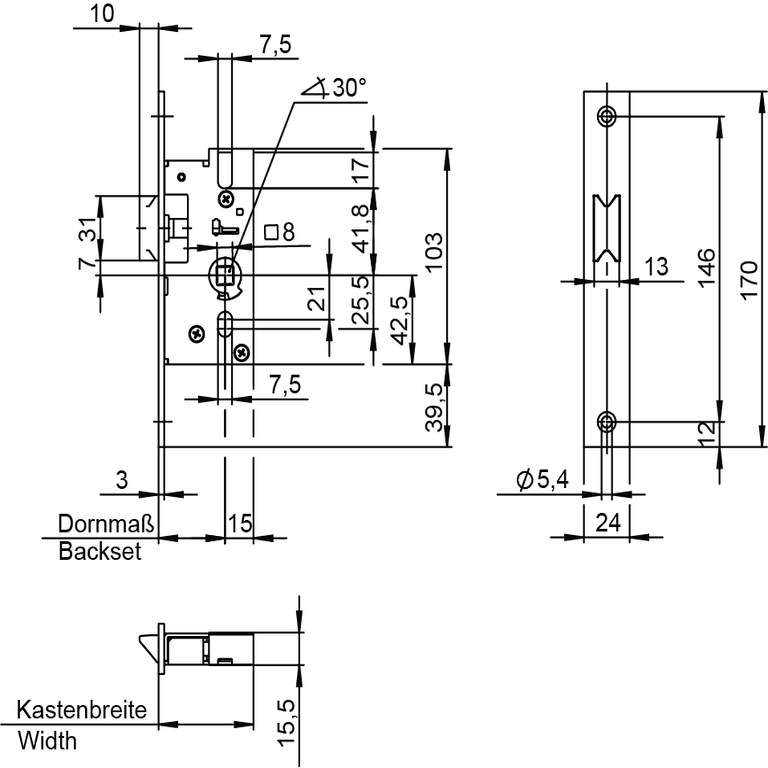

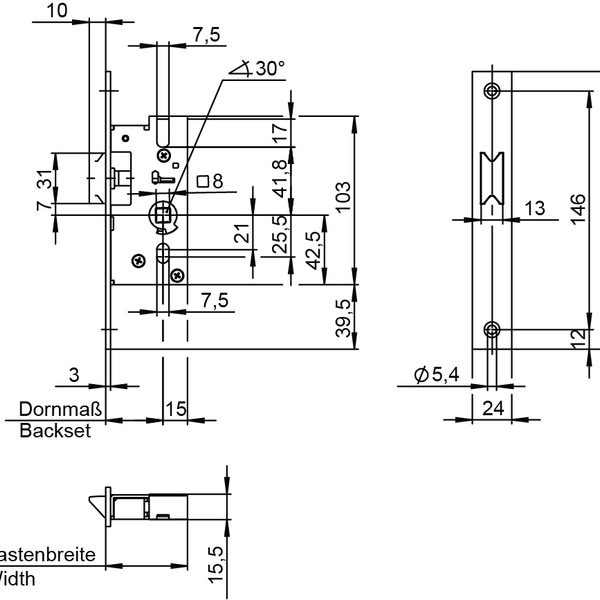

| 038f-techzeichnung.png | 76.95 KB | png | Download |
