| Connection cable | 10 m
|
| Dimension height | 90 mm
|
| Dimension width | 90 mm
|
| Electronic control unit power supply 12V DC | Yes
|
| Electronic control unit with 4 free programmable inputs | Yes
|
| Electronic control unit with configurable release time | 1 - 254 s
|
| Electronic control unit with exit button connection | Yes
|
| Electronic control unit with floating relay output (24V, 1A) | Yes
|
| Electronic control unit with RJ45-Network connection for Online connection | Yes
|

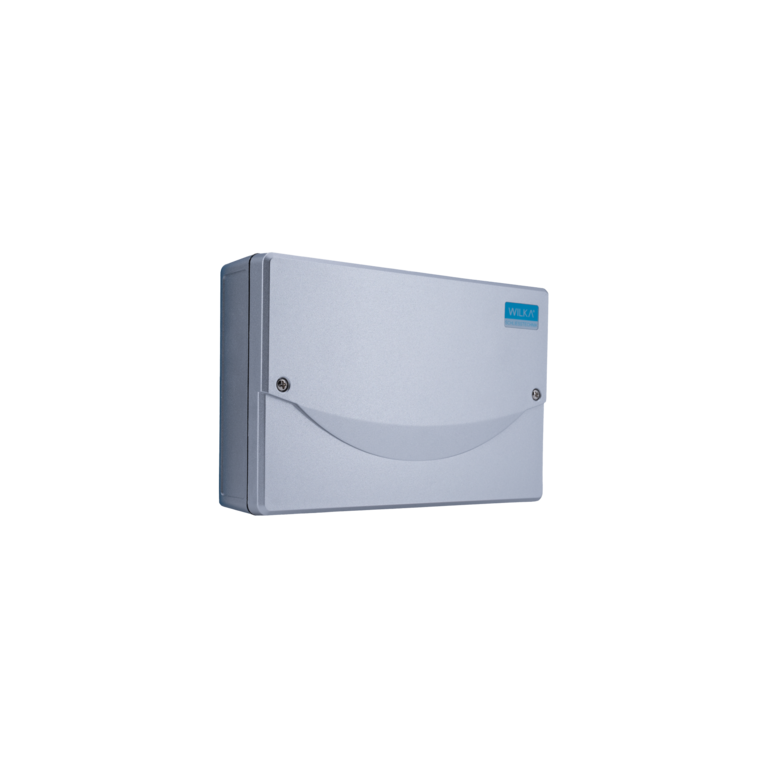

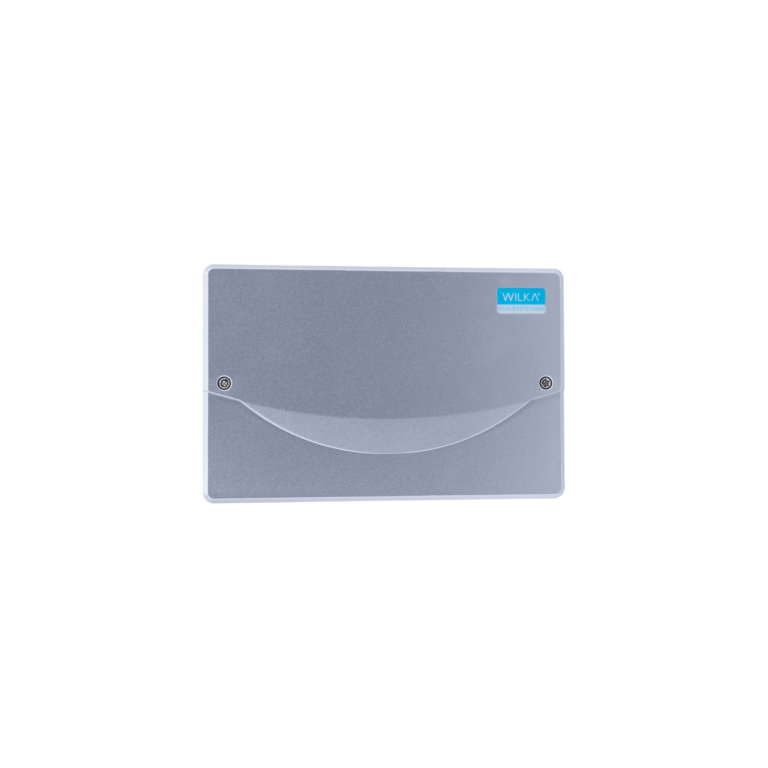

| Electronic control unit with silver plastic housing (LxWxH: 170x110x40 mm) | Yes
|
| Electronic control unit: two wall reader can be connected (inside and outside, easyAccess only) | Yes
|
| Optical signaling of access authorization | Yes
|
| Supported system | easyAccess
|
| Zuordnung Kategorie | 2.4 |
