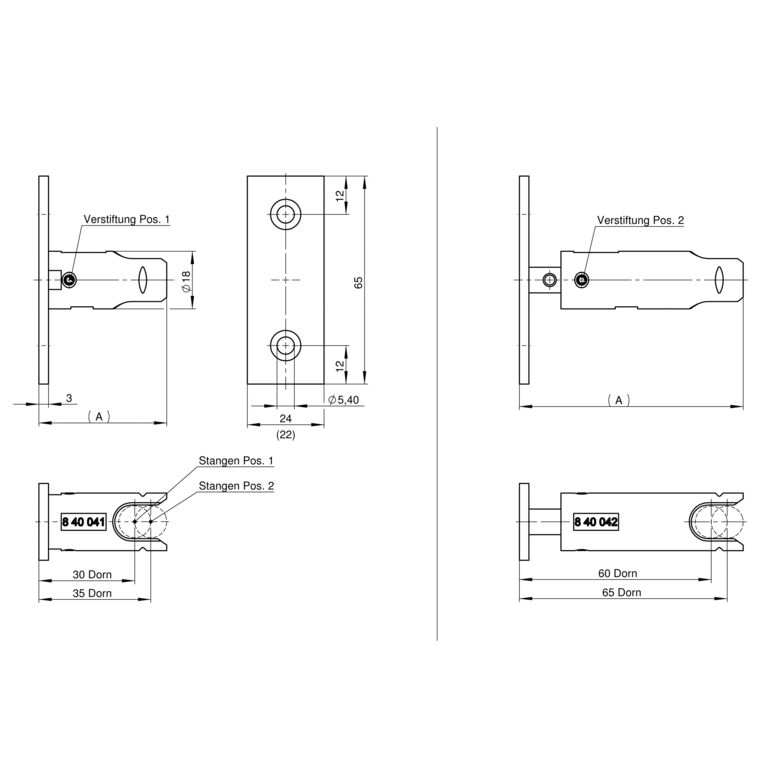

9644 Upper shoot bolt guide
Skip slider End of slider
Item no. 9644
| Assignment category | 4.7.4 |
| Certified according to EN 1125 | Yes
|
| Certified according to EN 179 | Yes
|
| Fire protection tested according to EN 1634-1 and 4102-18 | Yes
|
| Flat forend (special design) | 22 x 3 mm
|
| Flat forend (standard design) | 24 x 3 mm
|
| Forend length | 65 mm
|
| Material | Stainless steel mounting forend, plastic guidance element
|
| Notice | A shoot bolt guide is recommended for door heights of 2,5 m and up
|
| U-shaped forend (standard design) | 24 x 6 mm
|
| Usage | For guiding and stabilising the top shoot bolt in the profile
|
| Series | For Series 6000, 7000, 8600, 8700
|
14
Results found| Description | Language | File size | File type | |
|---|
| Zertifikat der Leistungsbeständigkeit EN 179 | pl | 1.26 MB | pdf | Download |
| Certificate of constancy of performance EN 179 | en | 1.38 MB | pdf | Download |
| Zertifikat der Leistungsbeständigkeit EN 179 | de | 1.26 MB | pdf | Download |
| Certificate of constancy of performance EN 1125 | en | 1.56 MB | pdf | Download |
| Zertifikat der Leistungsbeständigkeit EN 1125 | de | 1.38 MB | pdf | Download |
| Zertifikat der Leistungsbeständigkeit EN 1125 | pl | 1.38 MB | pdf | Download |
| Environmental Product Declaration EPD | en | 576.50 KB | pdf | Download |
| Umwelt Produktdeklaration EPD | de | 690.98 KB | pdf | Download |
| Umwelt Produktdeklaration EPD | pl | 690.98 KB | pdf | Download |
| Montage Stangenführung 9644 | pl | 151.39 KB | pdf | Download |
| Installation shoot bolt guide 9644 | en | 151.39 KB | pdf | Download |
| Montage Stangenführung 9644 | de | 151.39 KB | pdf | Download |

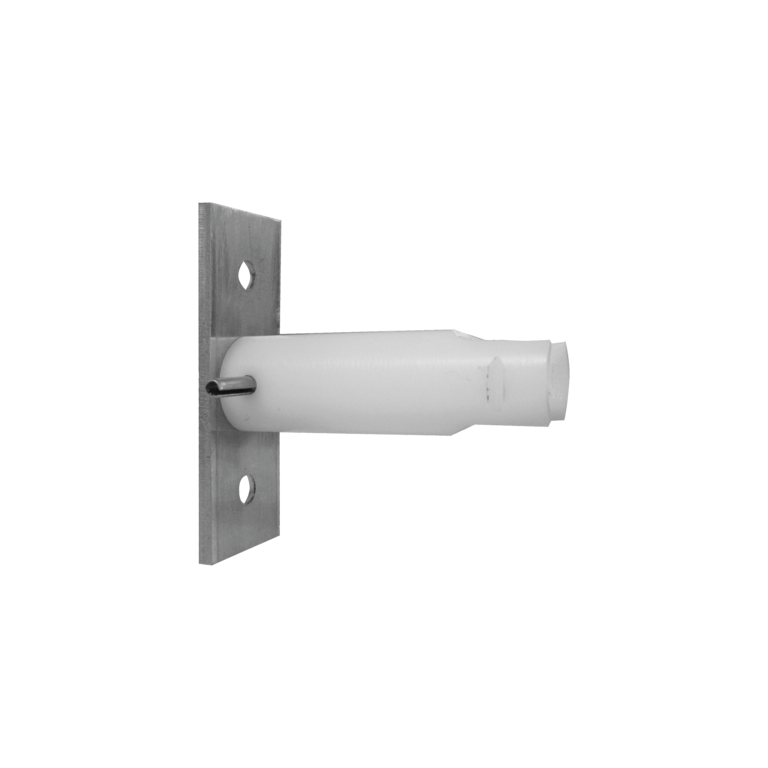

| 9644-produktfoto.png | | 55.44 KB | png | Download |

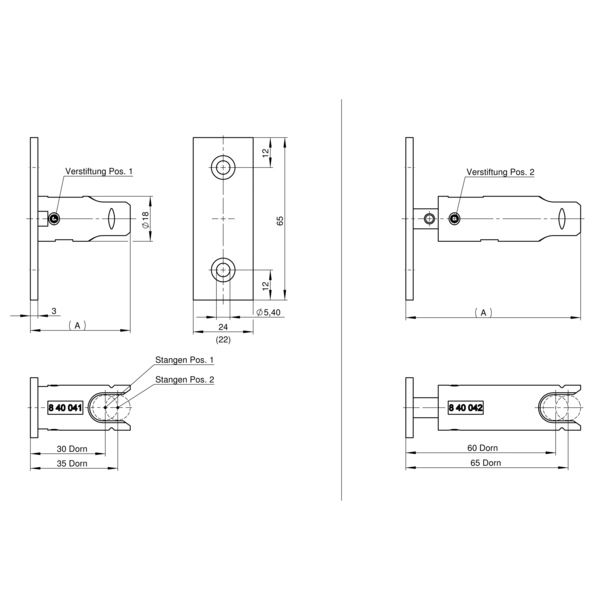

| 9644-techzeichnung.png | | 18.37 KB | png | Download |
