Fire protection tested according to EN 1634-1 and 4102-18
Yes
Flat forend (special design)
22 x 3 mm
Flat forend (standard design)
24 x 3 mm
Follower
9 mm
Follower turning angle
40°
Forend length
270 mm
Forend material
Stainless steel
Function
When the e-opener is supplied with power, the active leaf can be opened. Operation of a lever or push bar/touch bar causes the shoot bolts of the lock case to retract. The latch bolt and deadbolt of the active leaf are pushed back at the same time
Length of lip
Long lip, can be cut of (31,0mm)
Lock case depth
18,2 mm
Lock case height
252 mm
Lock case material
Steel galvanised
Lock case widths
Backset + 15 mm
Mounted with e-opener
Yes, direction must be stated
Notice E-Öffner
Incl. 10 m cable with plugin contact for easy exchange
Notice Follower
Can also be combined with fittings with 45° angle of rotation, Combination with the reverse action lock 661U is possible

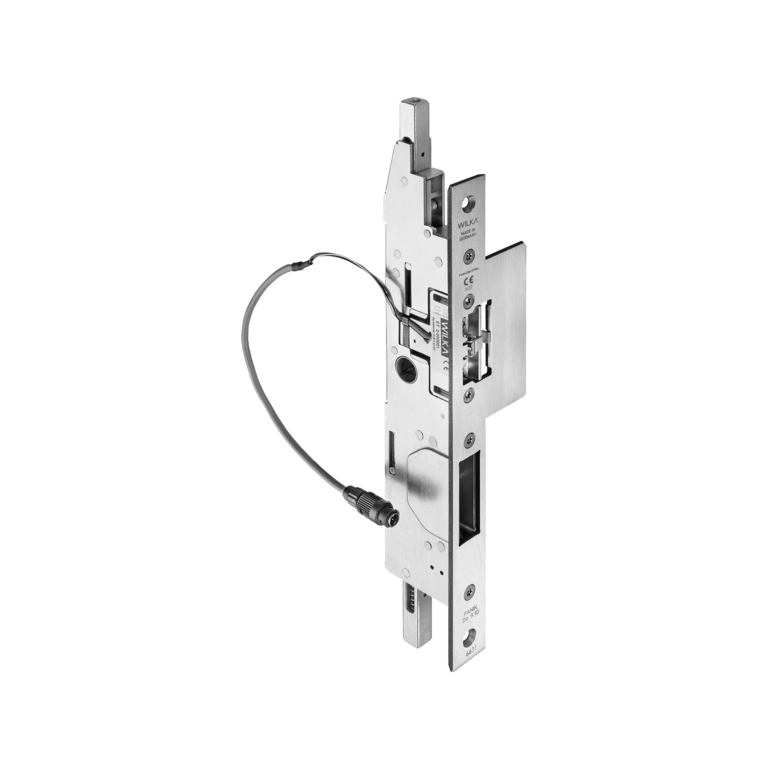

Notice lipped striking plate
Forend lip can be reduced in 0.5 mm steps
Notice U shaped forend
All U-shaped forends are delivered with end caps, Backset changes by -1 mm for U-shaped forends
Rod stroke
20 mm
U-shaped forend (special design)
22 x 6 mm
U-shaped forend (standard design)
24 x 6 mm
Usage
For automatic locking of the inactive leaf for locks
