4906 Emergency exit push bar for tubular frame doors
Skip slider Emergency exit push bar for tubular frame doors
End of slider
| Assignment category | 4.6.1 |
| Certified according to EN 1125 | Yes |
| Certified according to EN 179 | Yes |
| Cylinder | Profile cylinder / Swiss round cylinder |
| Distance | 92 mm |
| Fire protection tested according to EN 1634-1 and 4102-18 | Yes |
| Handle bar length | 1150 mm |
| Lever form | Handle tube oval |
| Material | Satin stainless steel |
| Material (special design) | Zinc die-cast F1 painted |
| Notice | For right and left hand use, incl. 2 transmission units, includes cover and lever. Square pin not included |
| Up to leaf width | 1409 mm |
| Usage | For active leaf locks |
5
Results foundShow per page
| Description | Language | File size | File type | |
|---|---|---|---|---|
| Zertifikat der Leistungsbeständigkeit EN 1125 | de | 1.38 MB | Download | |
| Zertifikat der Leistungsbeständigkeit EN 1125 | pl | 1.38 MB | Download | |
| Certificate of constancy of performance EN 1125 | en | 1.56 MB | Download | |

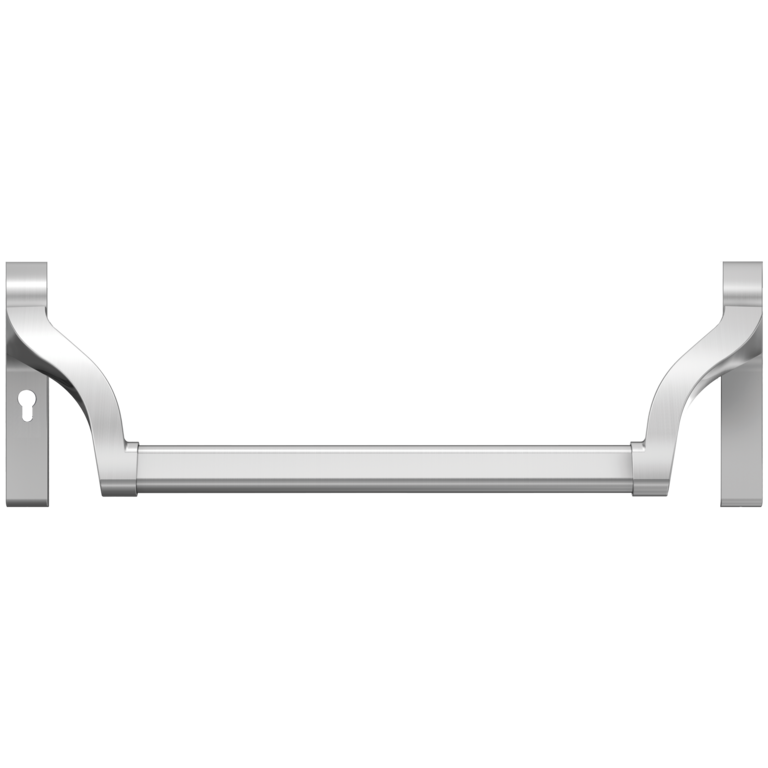

| 4906-produktfoto.png | 46.70 KB | png | Download | |

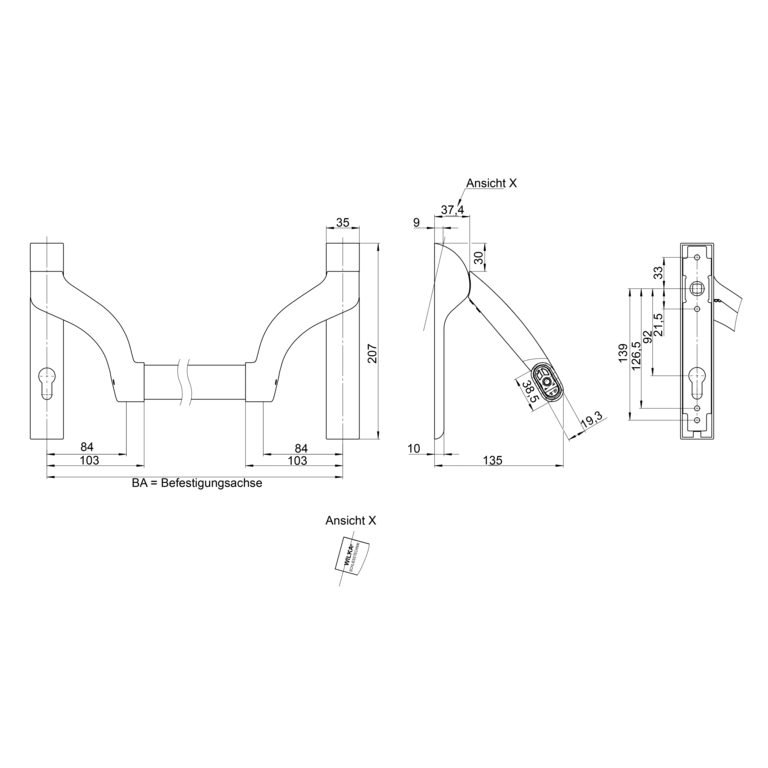

| 4906-techzeichnung.png | 17.47 KB | png | Download |
