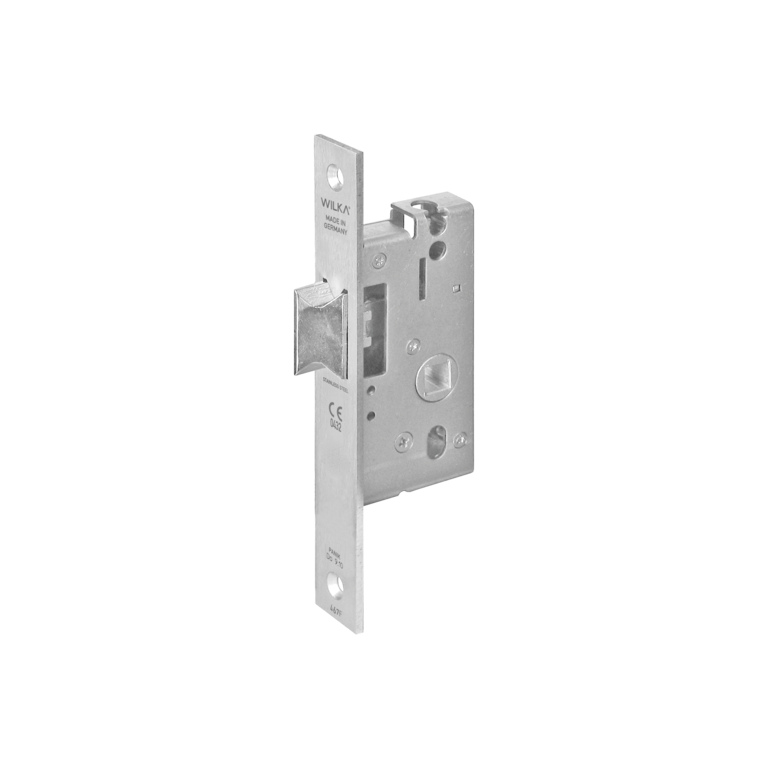

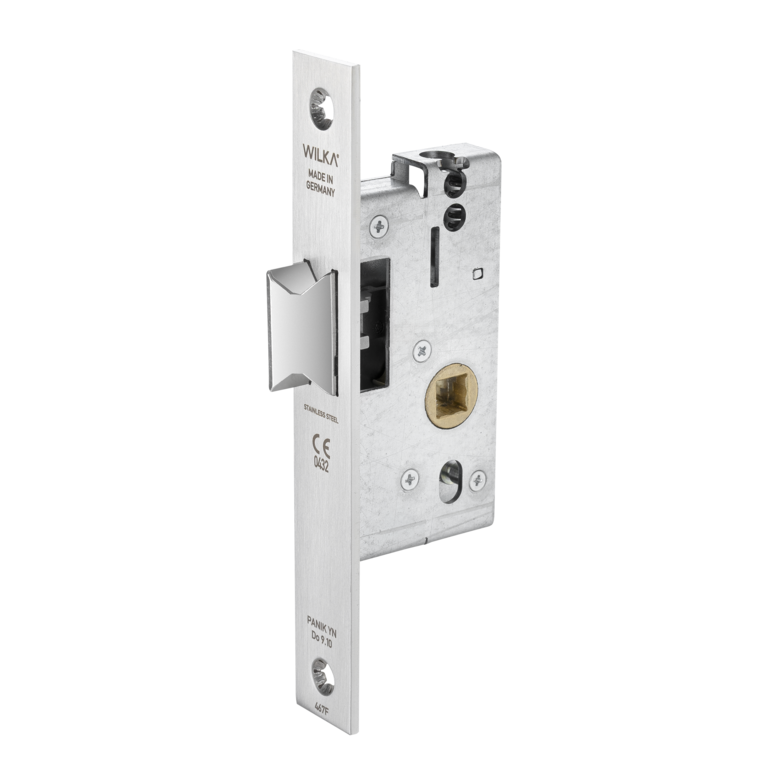

467F Mortise latch lock with emergency exit function
Skip slider Mortise latch lock with emergency exit function
End of slider
| Assignment category | 4.2.2.1 |
| Backset | 30, 35, 40, 45 mm |
| Backset (1) | 15 mm |
| Certified according to EN 1125 | Yes |
| Certified according to EN 12209 | Yes |
| Certified according to EN 179 | Yes |
| Cylinder | Profile cylinder |
| DIN Direction | DL / DR |
| Direction must be stated | No |
| Fire protection tested according to EN 1634-1 and 4102-18 | Yes |
| Flat forend (special design) | 22 x 3 mm |
| Flat forend (standard design) | 24 x 3 mm |
| Follower | 9 mm |
| Follower monitoring device (incl. 8 m cable) | Optional |
| Follower turning angle | 30° |
| Forend length | 146 mm |
| Forend material | Stainless steel |
| Latch bolt exclusion | 12 mm |
| Latch bolt extended (optional) | 3 mm / 5 mm |
| Latch bolt type | Prism latch bolt |
| Lock case depth | 15,5 mm |
| Lock case height | 99,5 mm |
| Lock case material | Steel galvanised |
| Lock case widths | Backset + 15 mm |
| Notice Follower | One-piece |
| Notice U shaped forend | All U-shaped forends are delivered with end caps, Backset changes by -1 mm for U-shaped forends |
| Reversible latch bolt | Yes, delivered as DIN left |
| Suitable striking plates | P687, P688, P689 |
| U-shaped forend (special design) | 22 x 6 mm |
| U-shaped forend (standard design) | 24 x 6 mm |
| Usage | For single-leaf and double-leaf tubular frame doors made of aluminium and steel |
| Function | Inside: Activation of the lever or touch bar/push bar causes the latch bolt to retract, Outside: A fixed door knob is on the outside of the door |
| Series | 467F |
28
Results foundShow per page
| Description | Language | File size | File type | |
|---|---|---|---|---|
| Prospekt Programmübersicht Fluchttürschlösser | de | 16.01 MB | Download | |
| Brochure Product overview emergency exit door locks | en | 16.00 MB | Download | |
| Zertifikat der Leistungsbeständigkeit EN 179 | de | 1.26 MB | Download | |
| Zertifikat der Leistungsbeständigkeit EN 179 | pl | 1.26 MB | Download | |
| Certificate of constancy of performance EN 179 | en | 1.38 MB | Download | |
| Zertifikat der Leistungsbeständigkeit EN 1125 | de | 1.38 MB | Download | |
| Certificate of constancy of performance EN 1125 | en | 1.56 MB | Download | |
| Zertifikat der Leistungsbeständigkeit EN 1125 | pl | 1.38 MB | Download | |
| QM 342 ift Rosenheim-230-7031366-1-5 | de | 456.00 KB | Download | |
| QM 342 ift Rosenheim-230-7031366-1-5 | en | 456.00 KB | Download | |
| QM 342 ift Rosenheim-230-7031366-1-5 | pl | 456.00 KB | Download | |
| Umwelt Produktdeklaration EPD | pl | 690.98 KB | Download | |
| Umwelt Produktdeklaration EPD | de | 690.98 KB | Download | |
| Environmental Product Declaration EPD | en | 576.50 KB | Download | |
| VdS Anerkennung - Einbruchmeldeanlagen der Klasse C | de | 1.30 MB | Download | |
| VdS approval - Class C burglar alarm systems | en | 1.30 MB | Download | |
| VdS Anerkennung - Einbruchmeldeanlagen der Klasse C | pl | 1.30 MB | Download | |
| Allgemeine Gebrauchs-, Installations- und Wartungsanleitung Serie 4000, 6000, 7000 | de | 1.81 MB | Download | |
| Allgemeine Gebrauchs-, Installations- und Wartungsanleitung Serie 4000, 6000, 7000 | pl | 1.81 MB | Download | |
| General operating, installation and maintenance instructions series 4000, 6000, 7000 | en | 1.81 MB | Download | |
| Allgemeine Montageanleitung - CE Kennzeichnungen | de | 426.45 KB | Download | |
| Allgemeine Montageanleitung - CE Kennzeichnungen | pl | 426.45 KB | Download | |
| General installation instruction - CE labellings | en | 426.45 KB | Download | |
| Leistungserklärung S001 BauPVo (EU Nr. 305/2011) EN 179 / EN 1125 | de | 1.06 MB | Download | |
| Declaration of Performance S001 BauPVo (EU Nr. 305/2011) EN 179 / EN 1125 | en | 1.06 MB | Download | |
| Leistungserklärung S001 BauPVo (EU Nr. 305/2011) EN 179 / EN 1125 | pl | 1.06 MB | Download | |
| 467f-produktfoto.png | 67.24 KB | png | Download | |

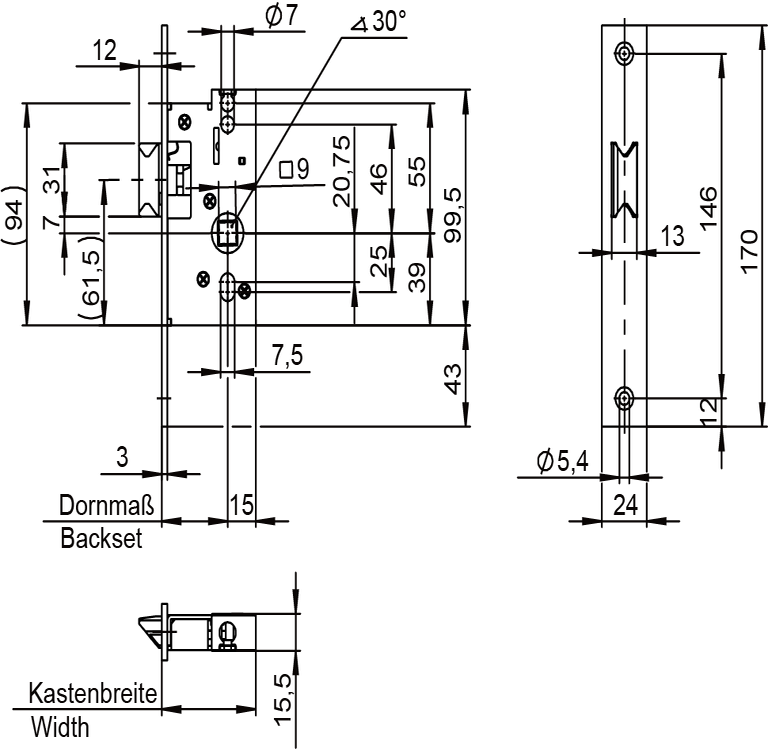

| 467f-techzeichnung.png | 85.46 KB | png | Download |
