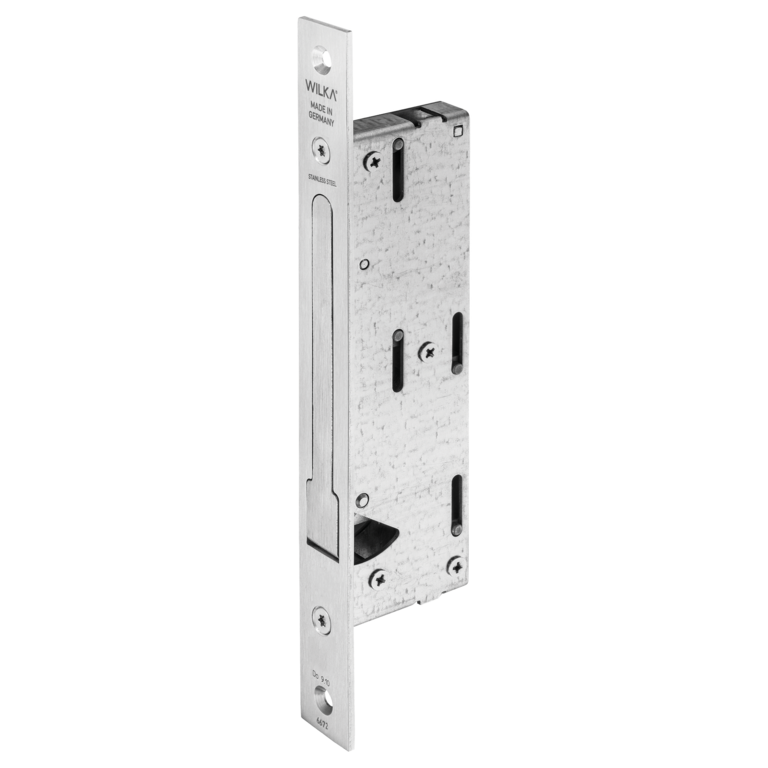

Function: Activation of the lever integrated into the forend causes the shoot bolts to retract into the espagnolette lock. After the lever has been released the shoot bolts are pushed out of the espagnolette lock and the lever returns to its position within the lock forend
Application For automatic locking of inactive leaf
Certified according to EN 12209 Yes
Function Activation of the lever integrated into the forend causes the shoot bolts to retract into the espagnolette lock. After the lever has been released the shoot bolts are pushed out of the espagnolette lock and the lever returns to its position within the lock forend

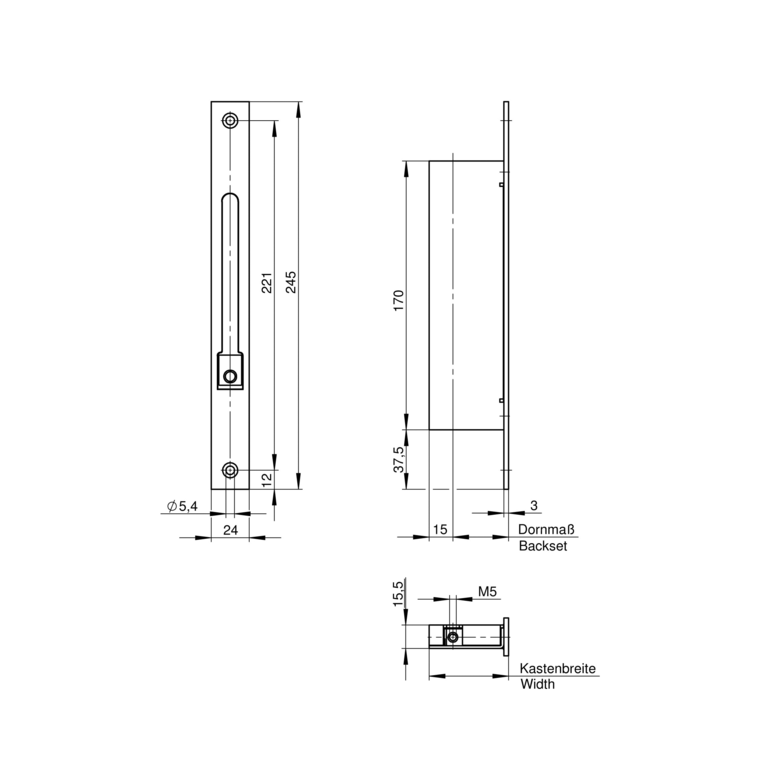

Backset
30, 35, 40, 45, 50, 55, 60, 65 mm
Backset (1)
15 mm
Connection thread for shoot bolt
M5
Flat forend (standard design)
24 x 3 mm
Forend length
245, 270 mm
Forend material
Stainless steel
Lock case depth
15,5 mm
Lock case height
170 mm
Lock case material
Steel galvanised
Lock case widths
Backset + 15 mm
Notice U shaped forend
All U-shaped forends are delivered with end caps, Backset changes by -1 mm for U-shaped forends
